3-axle Fuel tanker semi-trailer
3-axle Fuel tanker semi-trailer

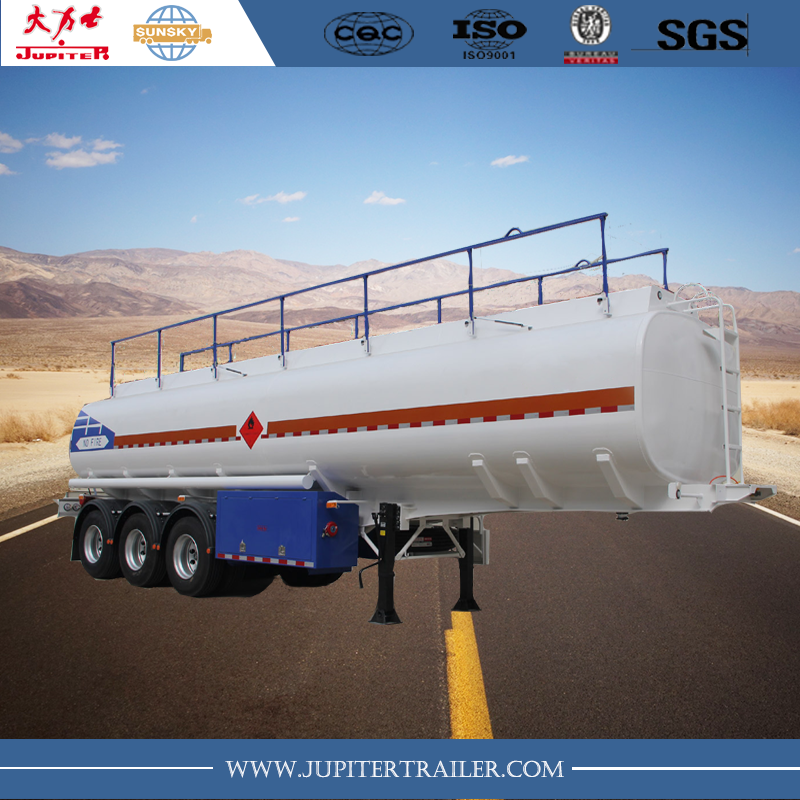

SUNSKY BRAND 36000L 3-axle Fuel Tanker Semi-trailer

  • Item NO.:

    SS9330GRX
  • Lead Time:

    23-28DAYS
  • Product Orgin:

    CHINA
  • Brand:

    JUPITER brand
  • Shipping Port:

    ANY PORT, CHINA
  • Payment:

    T/T; L/C at sight
  • Price:

    $25500/Unit
  • Market Price:

    $26000
  • Price Range:

    10-50/24500$
  • Color:

    White and Grey
Contact Now
Description

SUNSKY BRAND 36000L 3-Axle Fuel Tanker Semi-Trailer

1.SUNSKY BRAND 36,000 Liter,3 -5 compartment Fuel tank trailer,exported to Philippines,Malawi,Mozambique etc.

2.As the European standard to design,Lighter in Tare weight and unique design to reduce fuel consumption.

3.Advanced welding technology in tank ,Equip famous Brand parts in trailer,Ensure the safety of oil transport.

4.Some easily broken parts will be deliver with trailers.Also give you cost price if you buy parts from us.

5.Received good comment from our customers,SUNSKY worth you to trust.

Features:

1) Manufacturer, 32 years professional experience.
2) Two years guarantee term provided freely.

3) Export more than 1000 units to Africa, Southeastern Asia, and South America.
4) Products can be custom-made according to your design.


Specification:


36000L 3-axle Fuel Tank Semi-trailer

Feature:

Carry Fuel

Dimension(L*W*H):

11700*2500*3750mm

Model

SS9330GRX

Material:

Carbon Steel

Stainless Steel

Compartment:

3-5

Capacity(kgs):

36000L

Tare weight(kgs):

10,000-11,000kgs

10,000-11,000kgs

Kingpin

The world-famous JOST brand bolt-in/welded type 3.5”/2”

Landing gear

JOST brand two-speed manual operation 19”

Tire size

11.00R2011R22.5315/80R22.5385/65R22.5

Rim size

8.25*22.59.00*22.511.75*22.5

Axle

Original BPW-12T

Leafs spring

Fuwa brand with 8pcs of leafs spring/ Airbag suspension

Brake system

One unit WABCO RE 4 relay valve; four units T30/30 spring brake chamber; two units T30 spring brake chamber; two units reliable local brand 45L air tank; two units reliable local brand standard coppery air-connector.

Manhole:

Aluminum alloy ø500mm(20”) manhole with aluminum alloy cover; with breather valve;

Discharge Valve

Aluminum alloy discharge valve with cover

Foot Valve

Pneumatic control DN80 aluminum alloy foot valves

Pneumatic Control system

1set Pneumatic Control combined switch

1unit emergency switch

Discharge Hose

2 units 3”×6M factory PVC hose with quick coupling on both ends

Vapor Recovery & Overfill system

Optional

Fire Extinguisher Carrier

2 units at the left of rear of tanker, include 2 units 8kg dry powder type fire extinguisher inside

Electric system:

One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable

Prime & Topcoat painting

S.A.2.5standard sandblasting ;Zinc-rich & Polyurethane painting

We can build the trailers according to customer’s design and requirement
