Rotary wind blade trailer adapter

Lead Time:
30 days
Product Orgin:
China
Brand:
SUNSKY brand
Shipping Port:
Any Port Of China
Payment:
T/T; L/C
Price:
$16300/21000
Market Price:
$20000
Color:
optional

Contact Now

Whatsapp /VIBER :
8613666007515
Email:
sunskytrailers@gmail.com

Description

See the successful case.

How does wind blade adapter works?

This type of wind blade adapter does not adopt the pull structure of ordinary blade transporter trailer, but adopts another idea, which directly "grabs" the blade through the hydraulic workstation, and lifts it up in the air to realize the transportation of the super-long blade with a shorter trailer length.

In the process of transportation, the hydraulic control can make the wind blade rotate 360 degrees, the wind blade through the lower slewing support and the annular slide can rotate the maximum angle of 360 degrees, the wind blade through the expansion of the oil cylinder so that the maximum angle of the wind blade is 60 degrees.

Compare to ordinary wind mill blade trailers, especially for wind blade trailer in mountainous areas. The design of wind blade adaptor transporters solve the problem of mountain transportation to a certain extent, especially in the face of extreme curves.

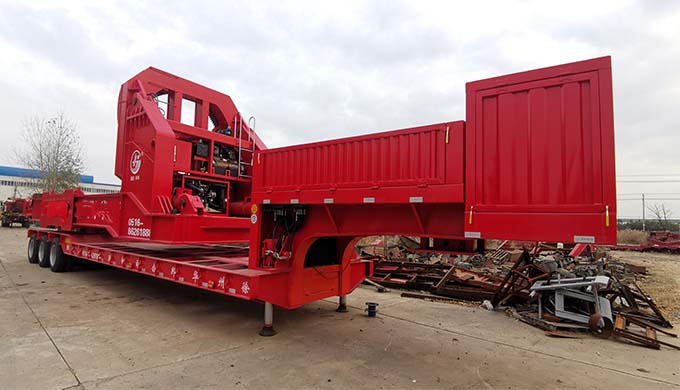

wind blade trailer drawing

wind turbine blade transport trailer

Specifications of wind blade adapter

Trailer Specification
Type	510 ton*meter rotary wind blade trailer
Dead weight	70,000kg
Trailer part
Overall size	1675011163400mm(Outside distance of tire 3400-4400mm)
Fifth wheel height	1350±100mm
Payload	100,000kg
Chassis	Heavy duty and extra durability designed ; opting for high tensile steel, welded by automatic submerged-Arc process. Middle flange height 900mm.Clearance 350mm.
Wheel base	11600+1320+1320mm
Landing gear	Hydraulic landing gear
King pin	3.5’’ bolt-in king pin.
painting	Complete chassis sand blasting to clean rust. I coat of anticorrosive prime,2 coats of final paint.
Vehicular applications	Wind blade transport
suspension	rigid suspension
Leaf spring	None
axle	3 lines 6 axles, 100T
Brake system	Double line brake system;
Brake chamber	6 chambers
Tire & rim	10.00R20 24 units, Giti tires; Zhengxing rim
Wind blade adapter
Overall size	1042034003865mm
Elevation	0-36°, double lifting cylinder
Rotation	360° rotary angle, Hydraulic 4WD full rotation
Pitch mode	360 ° rotary angle, Hydraulic 2WD(4WD optional) full rotation
Extension	0-4000mm, double pulling cylinder
Weighing	4-points gravity surveying
Electrical system
Voltage /lamp	24V with LED light
receptacle	7way socket SAE standard
wiring	Electric cable protected by PVC conduit on main frame.
Hydraulic system
Power unit	four cylinder diesel engine, 46kw
cylinder	20 cylinders
Accessories
Mud guard	yes
Accessories	yes

Windmill Rotor Blade Adapt
