20FT/40FT Interlink Trailer With Dropside
Lead Time:
30 working daysProduct Orgin:
ChinaBrand:
SUNSKY brandShipping Port:
Any port in ChinaPayment:
T/T,L/C at sightMarket Price:
$22500Price Range:
10-20/19800$Color:
Optional
-
Whatsapp /VIBER :
8613666007515 -
Email:
sunskytrailers@gmail.com

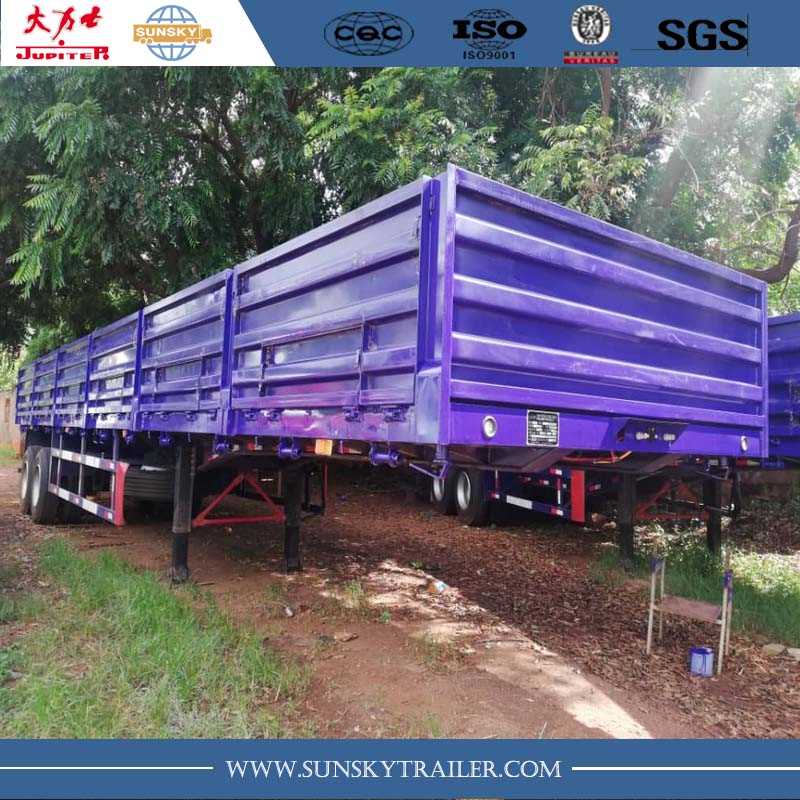

Item: 20FT/40FT Interlink Trailer With Drop Side
The interlink trailer are one type of popular transport vehicle in trucking and road transport industrial. They are normally used to carry bulk cargo like agricultural products ,rice bags, cement bags and containers etc.
The interlink trailer with dropside can use in many countries and areas like Zambia, Malawi, Mozambique,Namibia
The interlink trailer are Stable, durable and have a lower operation cost, you can use one truck to pull two trailers
( B train Trailer) or even more.
Inquire Now to Share a Special Discount Price！
Quality Guarantee
1. Two Years Free warranty terms on trailer chassis.
2. Spare parts support services, if insde the warranty the spare parts will be supplied freely.
3. All trailers are able to be desgined and produced as your requirements.
Specification
Style
Interlink(20FT+ 40FT) flat bed trailer
Dimension(L*W*H):
19005*2590*1550
Height of Side Wall(mm)
800
Payload(kgs):
70000
Tare
weight(kgs):
10,000
Kingpin
2”
bolt-in X2
Landing
gear
19”
X2
Tire
size
12R22.5
(17sets)
Rim
size
9.0*22.5 (17sets)
Axle
13ton
X4
Brake
system
Dual
line with WABCO brand Re-6 emergency relay valve, MBA brand T30/30 air
chamber, 46L air tank
Air
Chamber
MBA
T30/30
Electric
system:
One
unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse
light, side light, reflector, fog light; one set of 6-pin standard cable
Suspension:
steel
suspension with 8pcs of leafs spring
Container
locks
4+12
Painting:
S.A.2.5
standard sandblasting; Two coat of anti-corrosion prime; one coat of finish
painting
Drawing
