3-axle 30000L Milk Tanker Trailer

Transporting raw milk over long distances is a race against time and temperature. Dairy processors, commercial farms, and bulk liquid logistics providers face strict sanitation standards and the continuous risk of spoiled payloads caused by temperature spikes, bacterial growth, or structural milk agitation.

Our 3-axle 30000L milk tanker trailer is custom-engineered to solve these challenges head-on. Built with medical-grade food sanitary stainless steel and advanced thermal insulation, this liquid food semi trailer maintains ideal milk temperatures over extended haul routes while ensuring fast, effortless sanitation between loads.Whether you are moving fresh raw milk, liquid whey, cream, or edible oils, our tanker delivers maximum payload integrity with zero compromise on food safety.

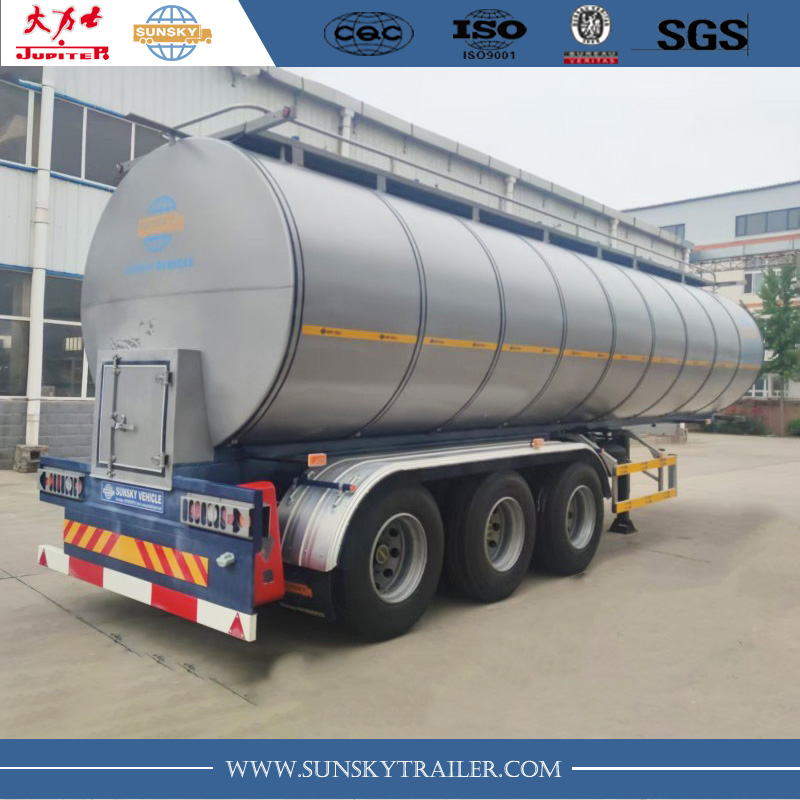

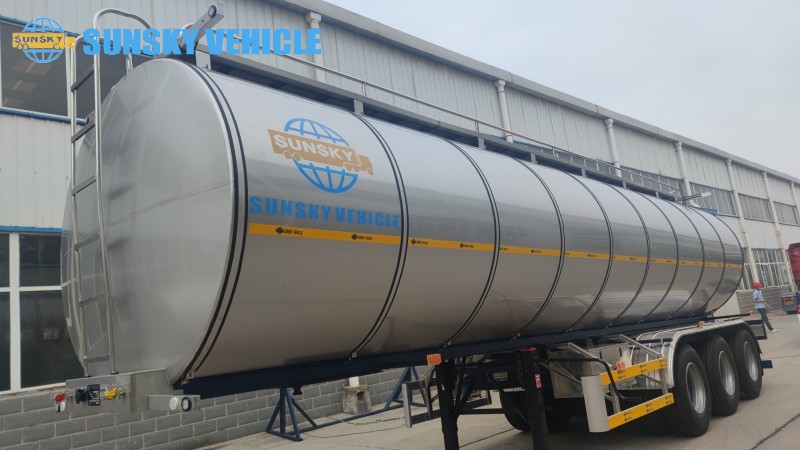

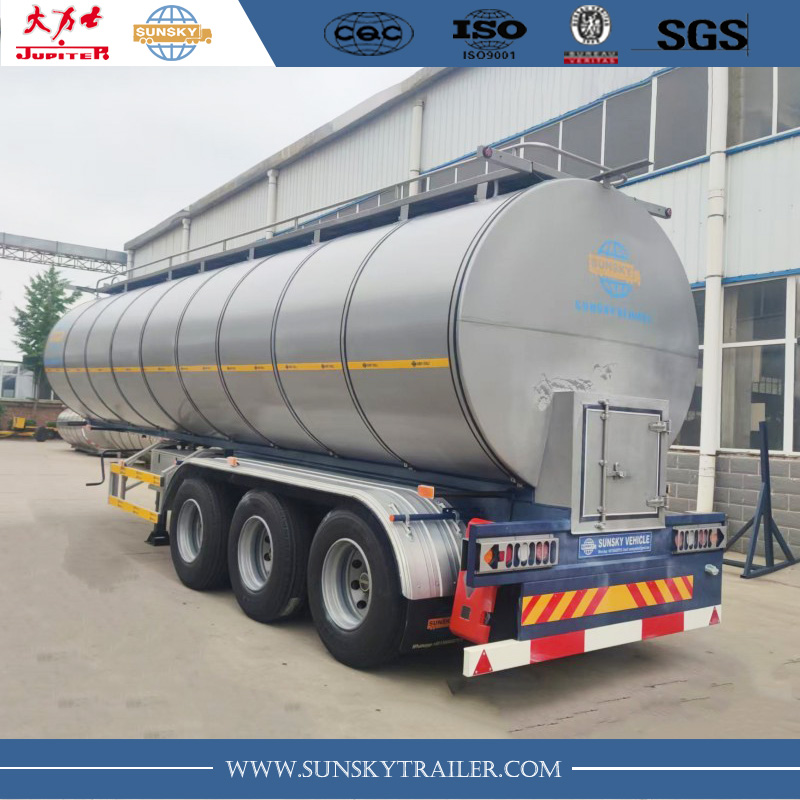

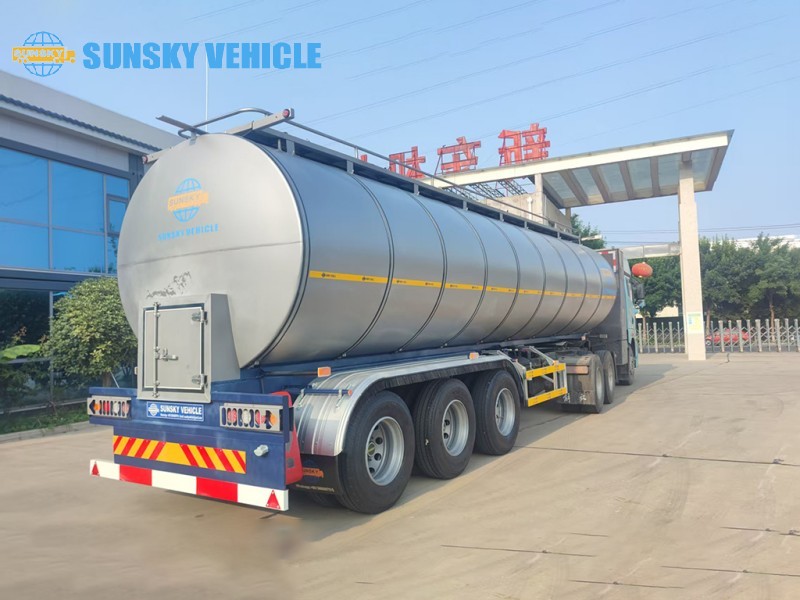

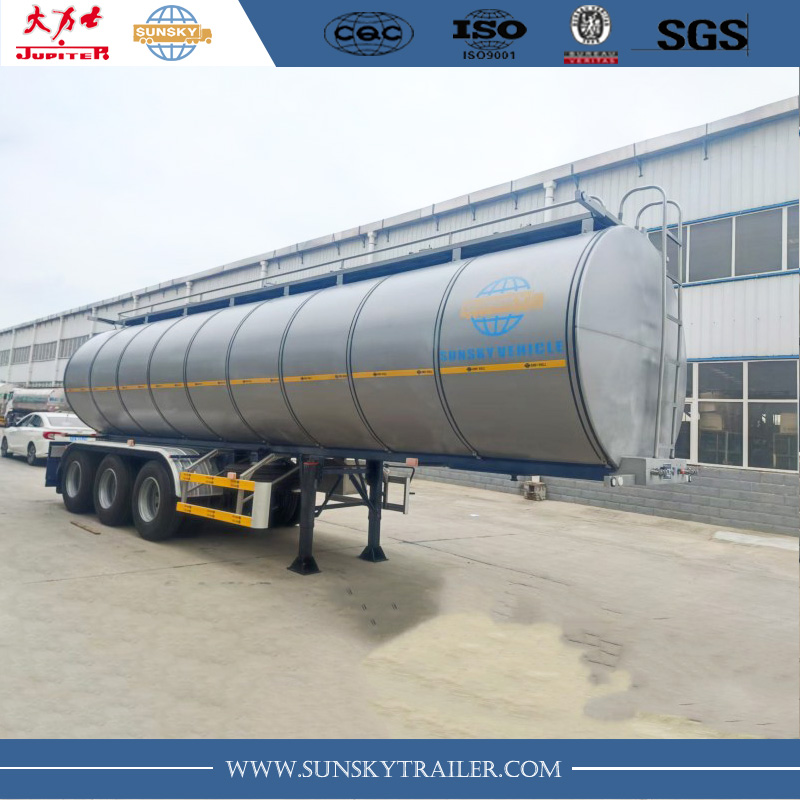

Images of 3-axle 30000L milk tanker trailer

Why Choose Our 30000 Liters Food-Grade Stainless Steel Milk Tanker?

+-----------------------------------------------------------------------+
|                         KEY ADVANTAGES AT A GLANCE                    |
+------------------------------------+----------------------------------+
| Thermal Preservation               | Temp rise ≤0.5°C over 24 hours   |
| Surface Polish Standard            | Inner Ra < 0.4μm (Mirror Finish) |
| Cleaning Efficiency                | 360° CIP Rotating Spray Balls    |
| Transport Protection               | Air Suspension Reduces Agitation |
+------------------------------------+----------------------------------+

1. Superior Thermal Insulation: < 0.5°C Temperature Rise in 24 Hours

Unlike standard insulated transport tanks that suffer from thermal bridging, our 3-axle 30000L milk tanker trailer uses an 80mm high-density seamless polyurethane (PU) foam layer injected between the inner tank shell and outer jacket. This creates a completely airtight thermal barrier that keeps milk below 4°C, preventing bacterial multiplication even in harsh tropical ambient environments.

2. Sanitary Food-Grade SUS304-2B Construction

The interior shell, internal bulkheads, discharge piping, and manhole assemblies are all crafted from certified food-grade SUS304-2B stainless steel (SUS316L available upon request). The inner vessel undergoes precision automatic longitudinal welding and internal mirror polishing down to Ra < 0.4μm. This ultra-smooth surface prevents milk fat buildup, eliminates micro-crevices where bacteria hide, and drastically reduces cleaning cycle times.

3. Integrated CIP Auto-Cleaning System

To maximize turnaround speed at unloading terminals, every 30000L fresh milk transport trailer comes standard with a full CIP (Clean-In-Place) sanitation circuit. Heavy-duty stainless steel spray balls cover 100% of the interior surface, allowing automated chemical washing, hot water rinsing, and sanitizing without manual tank entry.

4. Anti-Foaming Air Suspension & Wave-Baffle Design

Milk churning during transit leads to unwanted fat separation and foaming, which reduces product quality. Our tankers feature engineered multi-compartment dish-shaped baffles combined with a premium 3-axle air suspension setup. This configuration absorbs road vibrations, reduces fluid surge during braking, and guarantees stable vehicle handling on mountain passes and rural farm roads.

<!-- Section 3: Technical Specifications -->

Technical Specifications of 3 Axle Bulk Milk Transport Tanker

<!-- Section 4: Applications & Industry Scenarios -->

Multipurpose Food-Grade Transport Applications

While specifically engineered as an insulated fresh milk semi trailer, this versatile tank trailer meets international hygiene regulations for a wide range of liquid foodstuffs:

• Raw Milk Collection & Farm Pickups: Transport cold raw milk directly from dairy farm cooling centers to central processing plants without temp spikes.

• Processed Dairy Derivatives: Safely haul pasteurized liquid milk, liquid cream, condensed milk, and liquid whey.

• Liquid Foodstuff Logistics: Transport fruit juices, liquid sugar, wine, potable drinking water, and edible vegetable oils under strict food-grade cleanliness.

<!-- Section 5: Quality Assurance & Shipping -->

Rigid Testing & Factory Quality Assurance

Every 3-axle 30000L milk tanker trailer undergoes rigorous non-destructive and hydrostatic testing before leaving our facility to guarantee leak-proof performance and long-term durability:

1. 100% X-Ray Weld Inspection: All load-bearing and fluid-containing seam welds undergo radiographical testing to ensure zero structural defects.

2. Hydrostatic Water & Airtightness Test: The interior vessel is pressurized to verify structural strength under full volumetric loads.

3. CIP Sanitation & Flow Verification: CIP spray patterns and valve discharge speeds are factory-tested to meet global dairy sanitation protocols.

<!-- Section 6: FAQ Section for Structured Schema -->

Frequently Asked Questions (FAQ)

Q1: How many compartments can be built into a 30000L milk tanker trailer?

A: We offer flexible custom builds ranging from 1 single compartment up to 4 separate compartments. Each compartment is equipped with its own dedicated CIP spray ball, insulated manhole, and sanitary discharge valve, allowing you to transport different dairy grades in a single trip.

Q2: How does the CIP cleaning system work on this milk trailer?

A: The Clean-In-Place (CIP) system connects directly to your dairy plant's washing station. High-pressure cleaning agents and warm water pump through the internal stainless steel pipeline to rotating spray nozzles. This completely scours all interior surfaces in minutes without requiring workers to manually enter the tank.

Q3: What suspension is recommended for milk tanker trailers?

A: We strongly recommend our air suspension system. Air suspension significantly reduces road shock transferred to the liquid cargo, preventing milk fat breakdown, minimizing foam generation, and extending chassis lifespan.

<!-- Section 7: Conversion & Call to Action (CTA) -->

Request a Quote for Your 3-Axle 30000L Milk Tanker Trailer Today!

Are you ready to optimize your dairy supply chain with a reliable, hygienic, and thermal-efficient transport trailer? Our team of engineers will help you customize your 3-axle 30000L milk tanker trailer according to your regional axle load laws and operating environment.

• Fast Global Shipping (Ro-Ro / Bulk / Flat Rack Available)

• Factory Direct Pricing & Full Warranty Coverage

• Free Technical Drawing & Specification Sheet within 12 Hours
