tri axle skeletal trailer for sale
tri axle skeletal trailer for sale

40ft 3-axle skeleton semi-trailer for carry container

  • Item NO.:

    40ft 3-axle skeleton
  • Lead Time:

    20-30DAYS
  • Product Orgin:

    CHINA
  • Brand:

    SUNSKY brand
  • Shipping Port:

    ANY PORT, CHINA
  • Payment:

    T/T; L/C
  • Price:

    $9800/unit
  • Market Price:

    $11000
  • Price Range:

    10-50/9300$
  • Color:

    OPTION
Contact Now
Description

Item: Sunsky brand 40ft 3-axle skeleton semi-trailer for carry container


Why Choose SUNSKY skeletal trailer?

‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑

1. SUNSKY skeleton trailer is mainly suitable for the transportation of containers and container tanker.
2. The main frame is made of 16Mn high-tensile steel,reasonable structure,superior carrying capacity and no permanet deformation.
3. The axle,tyre and other accessories are the well-known products which supplied by the domestic and foreign professional manufacturer.
4. The trailer has a steady performace,long life and excellent antiseptic performace on painting.


Features: tri axle skeletal trailer for sale

­­­‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑

1) Manufacturer, 32 years professional experience.
2) Two years guarantee term provided freely.

3) Export more than 1000 units to Africa, Southeastern Asia, and South America.
4) Products can be custom-made according to your design.


Specification of tri axle skeletal trailer

‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑

40FT 3-axle Skeleton semi trailer

Feature:

Carry 1X20FT1X40FTor 2X20FT container

Dimension(L*W*H):

12420*2480*1540mm

Main frame:

Heavy duty and extra durability design; Opting for high tensible low carbon alloy Q345B steel; I beam welded by automotive arc-submerge process

Model:

SS9370TJZG

No. of axle:

3

Payload(kgs):

50000

Tare weight(kgs):

5600

Kingpin:

The world-famous JOST brand bolt-in/welded type 3.5”/2”

Landing gear:

JOST brand two-speed manual operation 19”

Tire size:

11.00R2011R22.512R22.5315/80R22.5385/65R22.5

Rim size:

8.25*22.59.00*22.511.75*22.5

Axle:

Original BPW-12T/ FUWA-13T

Suspension

Germany type with 12pcs of leafs spring/ Fuwa brand with 8pcs of leafs spring/ Airbag suspension

Brake system:

Dual line with WABCO brand Re-6 emergency relay valve, MBA brand T30/30 air chamber, 46L air tank

Electric system:

One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable

Container locks

12(for 1x20GP,2X20GP,1X40HQ)

Painting:

S.A.2.5standard sandblasting; Two coat of anti-corrosion prime; one coat of finish painting

Accessory:

One tool box; one set of standard tool

We can build the trailers according to customer’s design and requirement

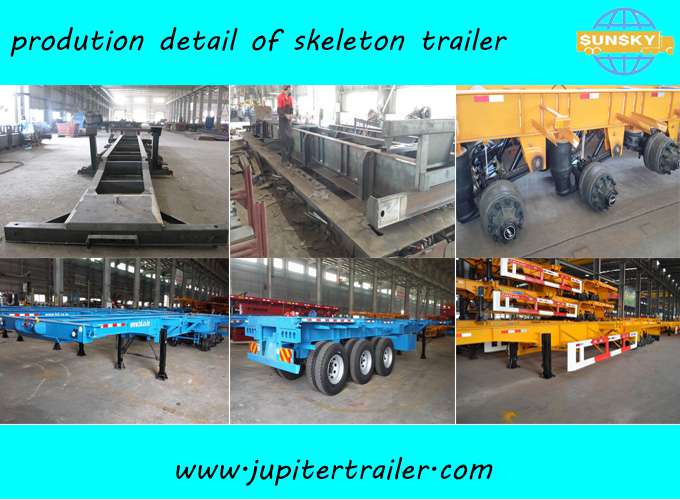

Production detail: container carrier trailer

‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑



Producing process

‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑

tri axle skeletal trailer for sale


Loading and Packing

‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑

tri axle skeletal trailer for sale



Our advantage and ability

‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑

tri axle skeletal trailer for sale



What others we can supply

‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑


Inquiry

Subject : 40ft 3-axle skeleton semi-trailer for carry container

Whatsapp : 8613666007515
