Interlink Flatbed Trailer

An Interlink Flatbed Semi-Trailer is a specially designed transportation system, which consists of a series of flatbed semi-trailers connected together to form ainterlink trailerfor long-distance freight transportation. Thecargo platform of each flatbed semi-trailer is flat and there are noboards or fences, providing a large loading area and flexible loading and unloading operations. This transport system is suitable for transporting large quantities of goods, such as containers, raw materials, industrial goods, building materials, etc.What’s more, it provides strong support to projects transportation and logistics.

Goods that can be transported by the Interlink Flatbed Trailer

General Cargo: FlatbedTrailers are frequently used to transport general cargo, including consumer goods, packaged goods, electronics, clothing, and other non-perishable items.

Bulk materials: Suitable for transporting bulk materials such as grains, coal, ores, aggregates, and other raw materials used in construction, agriculture, or manufacturing.

Building materials: Interlinked trailers are commonly used to transport building materials such as wood, steel, concrete, pipes, roofing materials, and other building materials.

Intermodal containers: Intermodal containers of all sizes and types can be transported, facilitating container freight between ports, rail yards, and distribution centers.

Home goods: Interlink trailers are sometimes used for home moving services to transport furniture, appliances, and personal items between residences.

Product Display：

Detail Design

1.The height of thebeams is changed, which strengthens the overall strength of the frame and makes the body structure more reliable

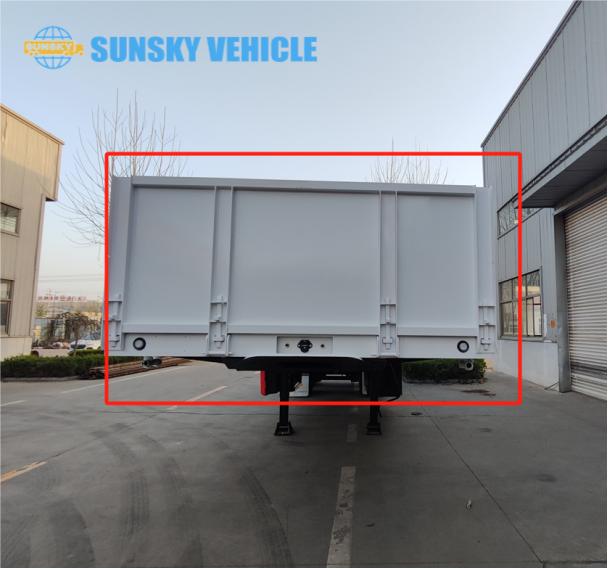

2.The frontwall is a Henred style that can be flipped down and removed for easy loading and unloading

3.When transporting dangerous goods or if customer requires,the trailer is usually equipped with a fire extinguisher bracket to ensure the safety of the vehicle during transportation

4.The mudguards are in the form of Henred and are used to block mud, gravel, etc., and protect the frame

5.FUWA axle

SPECIFICATION

20FT 2 axles + 40 FT 2 axles superlink flatbed trailer

Feature:Carry 1X20FT、1X40FT、or 2X20FT container, bulk cargo

Dimension(L*W*H):19500*2600*2700mm

Head boards:1000mm, 2 pieces Henred type

Main frame:Heavy duty and extra durability design; Opting for high tensible low carbon alloy Q345B steel; I beam welded by automotive arc-submerge process

Model:SS9400TJZP

No. of axle:2 sets front + 2 sets back

Payload(kgs):60000

Tare weight(kgs):11500

Kingpin:bolt-in type 2”

Landing gear:JOST brand 19”

Tire size:Triangle brand 315/80R22.5(17 sets)

Rim size:9.00*22.5(17 sets)

Axle:FUWA brand 13T*4sets

SuspensionSpring suspension

Brake system:Dual line with WABCO brand Re-6 emergency relay valve, MBA brand T30/30 air chamber, 46L air tank

Electric system:One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable

Container locks4 front + 12 back

Painting:S.A.2.5 standard sandblasting; Two coat of anti-corrosion prime; one coat of finish painting

Accessory:One tool box; one set of standard tool

Other:With CBCA certificate

With reinforcements in trailer structures

Without ABS

Without belly tanks

Drawing
