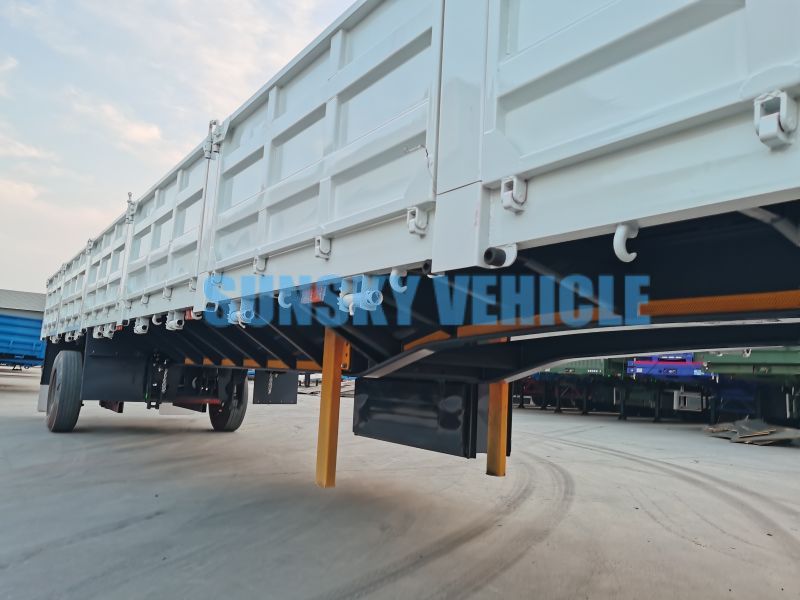

Drop side semi-trailer

Feature:

Carry 1X40FT 、1X20FT or 2X20FT container

Dimension(L*W*H):

12420*2480*1570mm

Main frame:

Heavy duty and extra durability design; Opting for high tensible low carbon alloy Q345B steel; I beam welded by automotive arc-submerge process

Model:

SS9380TJZP

Side wall:

800mm

No. of axle:

3

Payload(kgs):

50000

Tare weight(kgs):

7200

Kingpin:

Bolt-in type 2”

Landing gear:

Two-speed manual operation 19”

Tire size:

315/80R22.5 ( 13 sets)

Rim size:

9.00*22.5( 13 sets)

Axle:

3 Axle, 13 Tons

Suspension

Spring suspension

Brake system:

Dual line with Re-6 emergency relay valve, T30/30 air chamber, 46L air tank

Electric system:

One unit of 24V 7-pin ISO standard socket; with brake light,  turn  light,  reverse  light,  side  light,  reflector,  fog light; one set of 6-pin standard cable

Container locks

12(for 1X20GP, 2X20GP, 1X40HQ)

Painting:

Two  coat  of  anti-corrosion  prime;  one  coat  of  finish painting

Accessory:

One tool box; 500L reserve fuel tank

Color

Optional
