Heavy Duty 70 Tons 6 Axle Tipper Trailer

  • Item NO.:

    dump trailer
  • Lead Time:

    35 Working Days
  • Product Orgin:

    China
  • Brand:

    SUNSKY brand
  • Shipping Port:

    Any port of China
  • Payment:

    T/T, L/C at sight
  • Price:

    $32500
  • Market Price:

    $35500
  • Price Range:

    10-50/31500$
  • Color:

    Option
Contact Now
Description

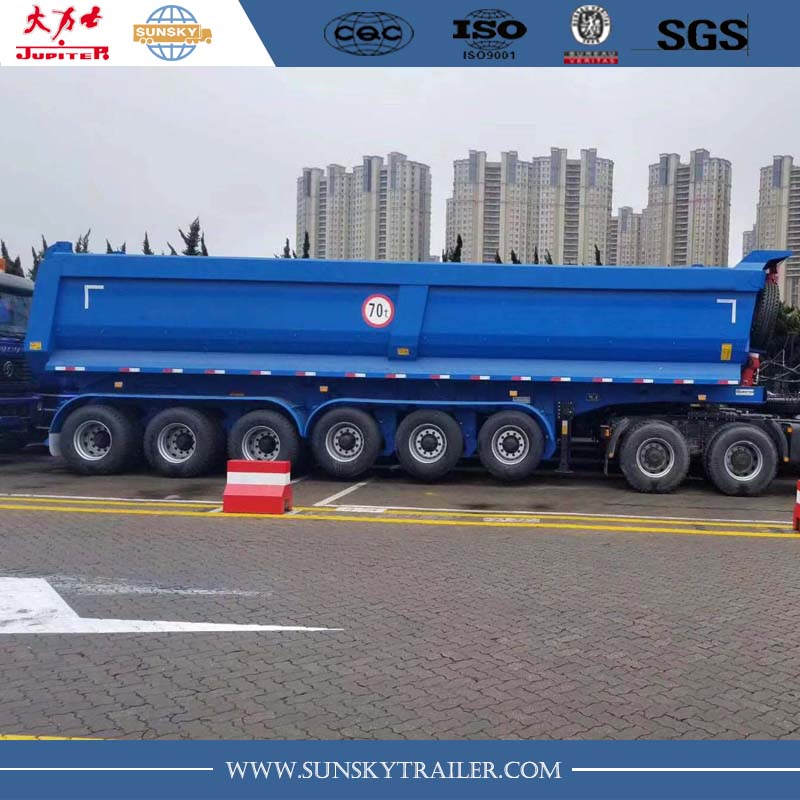

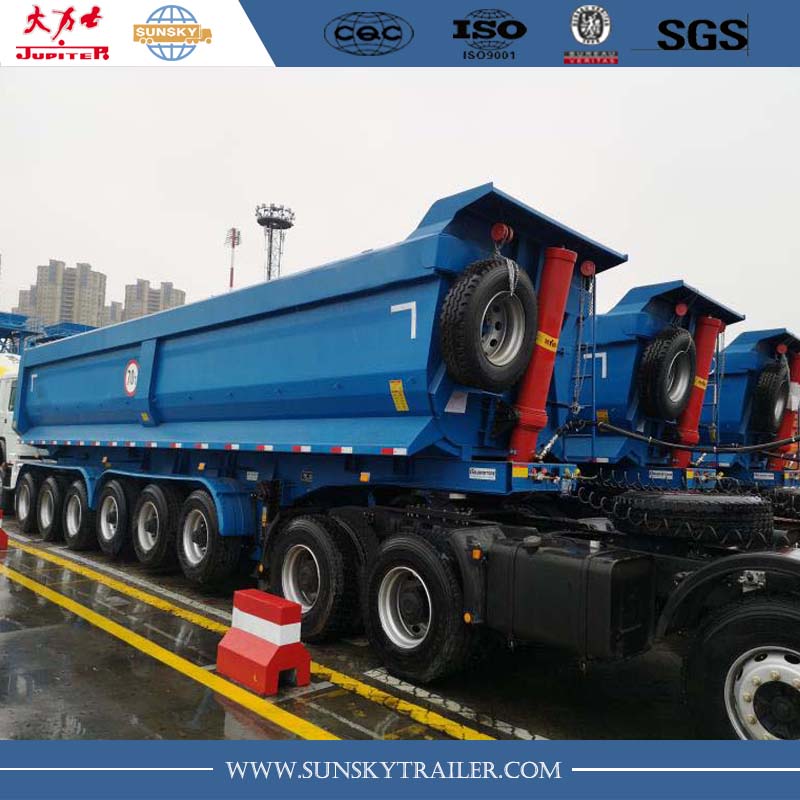

Item: Heavy Duty 70 Tons 6 Axle Tipper Trailer



Introduction of 6 axle tipper trailer

‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑


1. Heavy duty and extra durability design. Opting high tensile low carbon alloy Q345B Steel. I beam welded by automotive arc-submerge process.

2. The main frame body is made of Q345B high strength structure steel, automatic submerged arc welding throughout beams, and other cross-section main stringers structure for optimum carrying effect.

3. Use advanced over load design and welding technology for the chassis. Ensure the strong of trailer body. Make sure the tipper trailer still in good condition even in small overloading. The payload can be design max to 100 tons.

4. The tipper trailers equip full braking and electrical systems at home and abroad in accordance with ISO standard .Optional ABS system, braking, lighting is absolutely safe and reliable.


Quality guarantee

‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑

1) Manufacturer,more than 30 years professional experience.
2) Two years guarantee term provided freely.

3) Export more than 1000 units to Africa, Southeastern Asia, and South America.
4) We can produce the trailer and truck as your drawing or requirements, help you saving the cost and time.


Specification:

‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑

Style

45CBM 6 Axle Tipper Trailer

Model

SS9700ZYX

Dimension(L*W*H)mm:

13500*2550*3700

Inner dimension(L*W*H)mm:

12000*2550*1600

The material of body

BS700MC high tensible 4mm

Payload(kgs):

70000

Volume(CBM)

45 CBM

Tare weight(kgs):

14500

Kingpin

JOST 3.5” bolt-in

Landing gear

JOST 19”

Tire and rim

315/80R22.5 and 385/65R22.5

Axle

Fuwa brand 14 tons ,3 Axle and 16 tons 3 Axle

Suspension

3 Axle Spring suspension Plus 3 axle airbag with lifting

Brake system

Re-6 emergency valve

Air Chamber

MBA T30/30

Hydraulic system:

HYVA brand
