Heavy Haul 3 Axle 60 Tons Lowboy Trailers

  • Lead Time:

    30 Days
  • Product Orgin:

    CHINA
  • Brand:

    SUNSKY brand
  • Shipping Port:

    Any port in China
  • Payment:

    T/T; L/C
  • Price:

    $18500/Unit
  • Market Price:

    $27500
  • Price Range:

    10-50/17500$
  • Color:

    White
Contact Now
Description

Product Item: Heavy Haul 3 Axle 60 Tons Lowboy Trailers


Introduction of  lowboy trailer

Low bed trailers are not only used to transport machinery and vehicle but all kinds of heavy and abnormal loads. For instance, finished products from these industries are packed in containers and stacked on lowboys for transportation. The transporters can move stacks of heavy containers without toppling over. Hence, many manufacturers prefer to transported finished products to retailers with low bed trailers.


Advantage of China lowbed trailer

1. The lowbed trailer is more stability, The deck of the lowboys is extremely compared to other heavy haulers. A low-lying deck means that the center of gravity is low. Hence, low bed trainers are more stable when transporting heavy cargo than trailers.

2. The lowbed trailer are safe when transport abnormal caego. Low bed trailers are specifically designed to carry heavy loads. The trailers are made of high-strength materials that can withstand pressure of up to 700mpa.

3. Some countries have laws that restrict the height of cargo that can be transported on the road.Low bed trailers offer companies a solution to transport extra tall equipment safely without breaking the laws.


Quality guarantee for lowbed trailer

1. More than 30 years experiences in trailer and truck industrial,exported to more than 30 countries in Africa,Southeast Asia.

2. Two years free warranty terms for the I beam,three to six month free warranty terms for the Axles,suspension etc.

3. Spare parts support services is available

4. We able to design and produce the low bed trailer as your requirment,ensure to meet your local road regulation


Specification of 60 tons lowboy trailer

Products:

SUNSKY brand 60 tons 3 axle lowbed trailer

Feature:

Carry containers, bulk cargo, equipments

Dimension(L*W*H):

13000*2800*1600mm (custom-built)

Main frame:

Heavy duty and extra durability design; High tensible low carbon alloy Q345B steel

Model:

SS9600TDP

No. of axle:

3

Payload:

45,000 to 60,000kgs

Kingpin:

The world-famous JOST brand bolt-in/welded type 3.5"

Landing gear:

JOST brand two-speed manual operation 19”

Tire size:

11R22.5 (Optional)

Rim size:

9.00*22.5

Axle:

L1 Brand /Fuwa Brand

Suspension

Spring suspnesion with 8pcs of leafs spring

Brake system:

Dual line Re-6 emergency relay valve, T30/30 air chamber, 46L air tank

Electric system:

One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable

Container locks

0

Painting:

S.A.2.5 standard sandblasting; Two coat of anti-corrosion prime; one coat of finish painting

Accessory:

One tool box

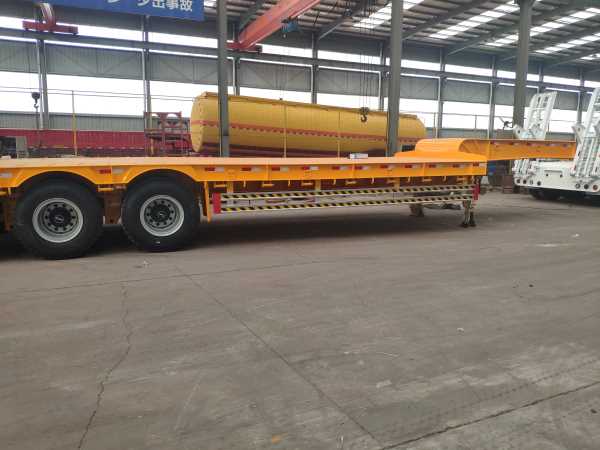

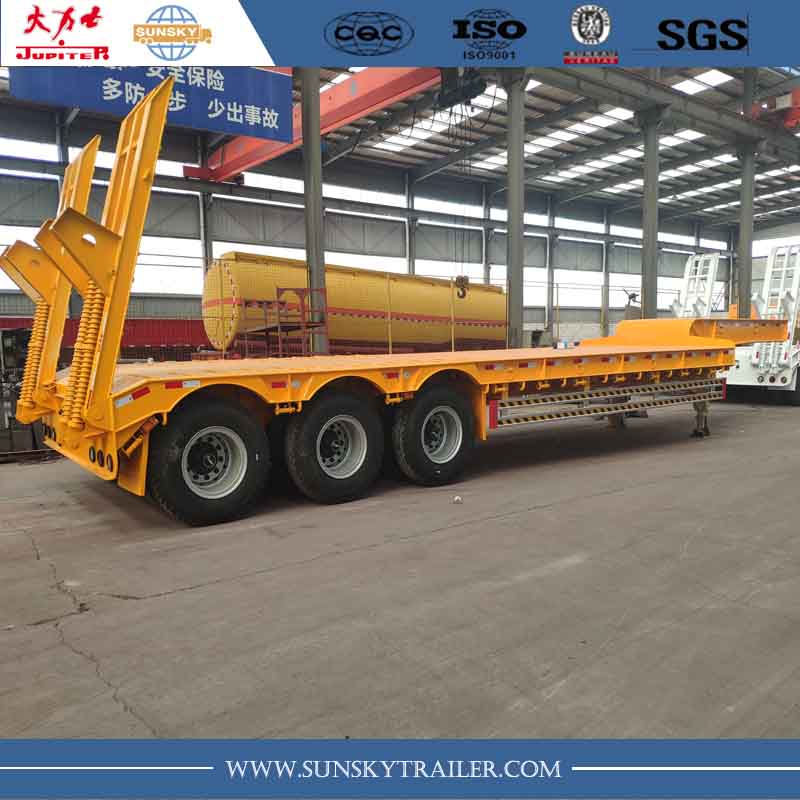

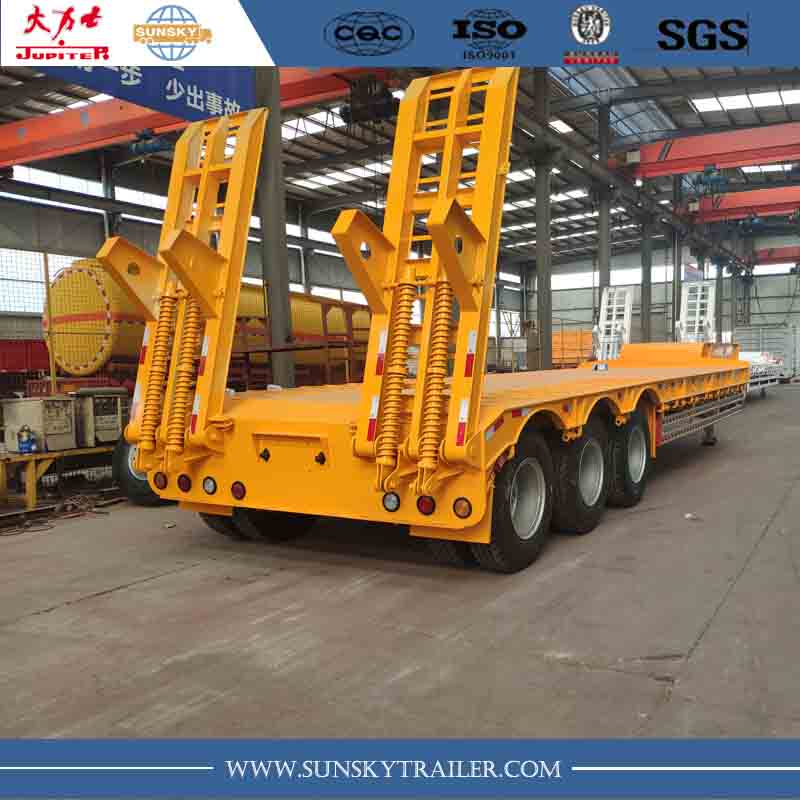

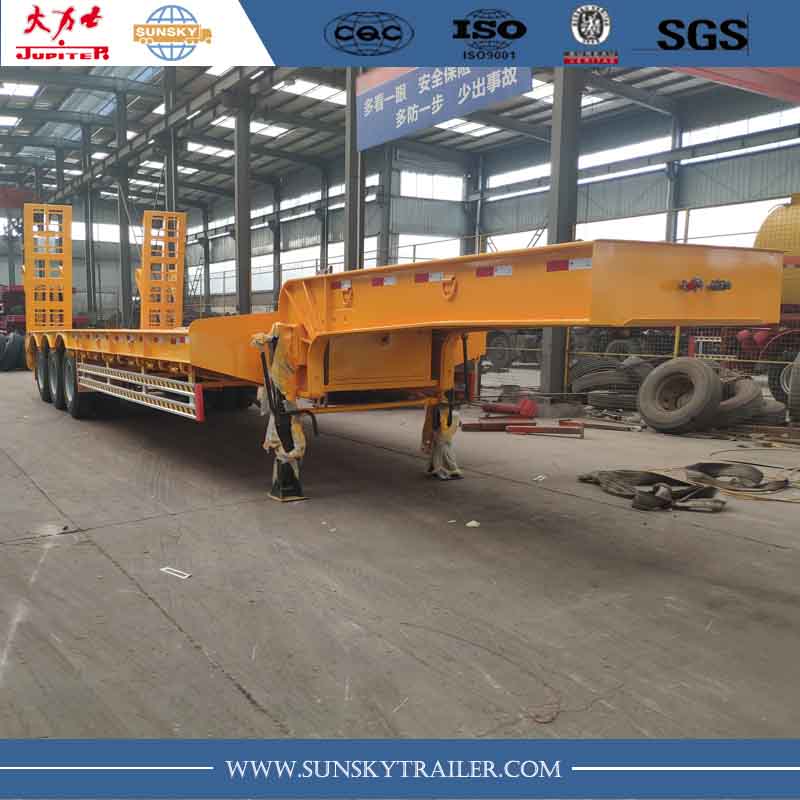

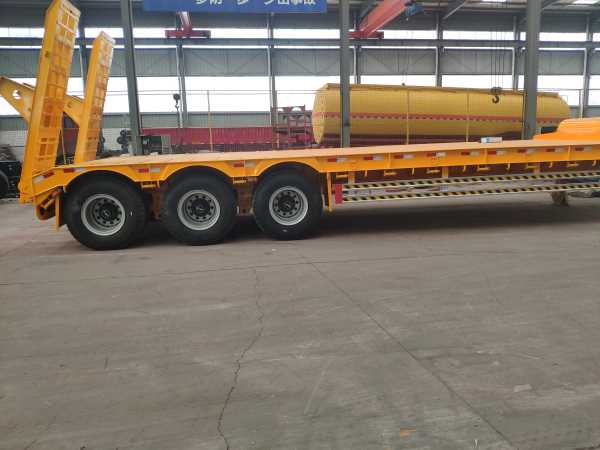

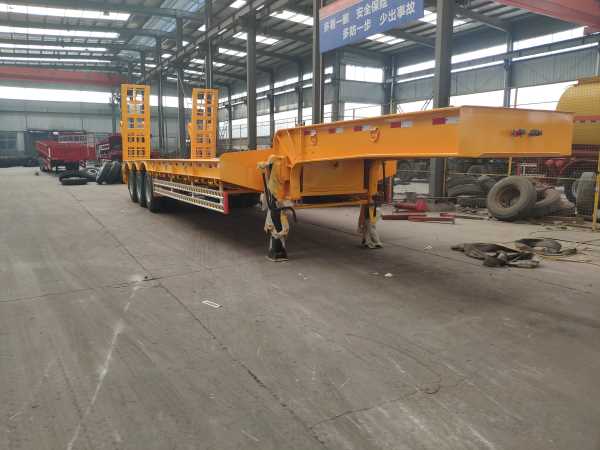

Detail Photo of 3 axle lowbed trailer


Heavy Haul 3 Axle 60 Tons Lowboy Trailers

3 axle lowbed trailer for sale

3 axle lowbed trailer for sale
