Lowbed Trailer for Heavy Equipment Transport

Engineered for extreme payloads, this 80-ton 4-axle lowbed trailer for heavy equipment transport features a 3.3m expandable deck, low 1100mm loading height, and high-tensile Q355 steel construction. Built to haul excavators, dozers, and bulky machinery smoothly over rough terrain.

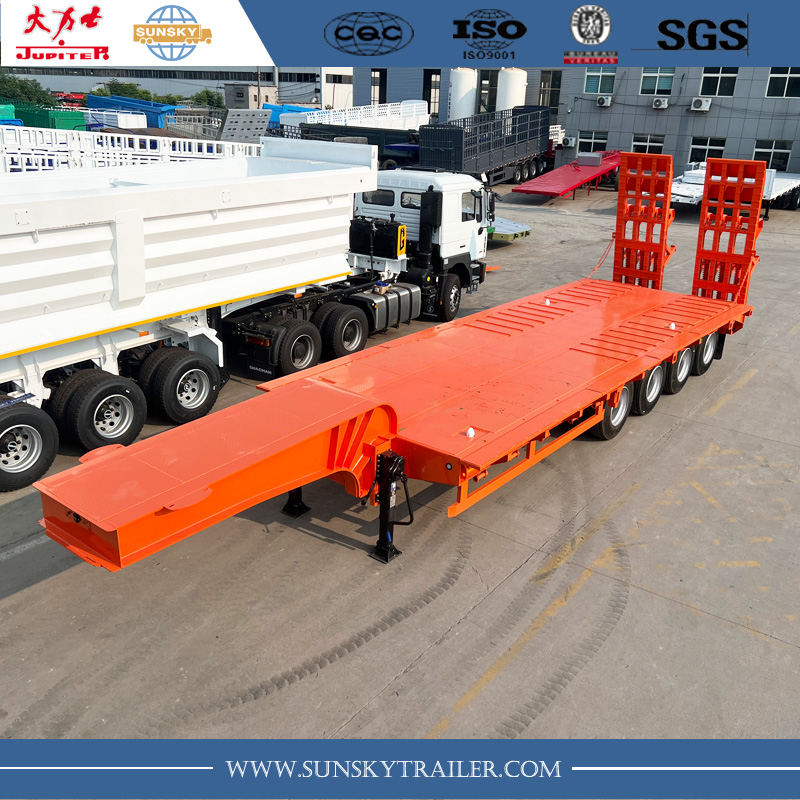

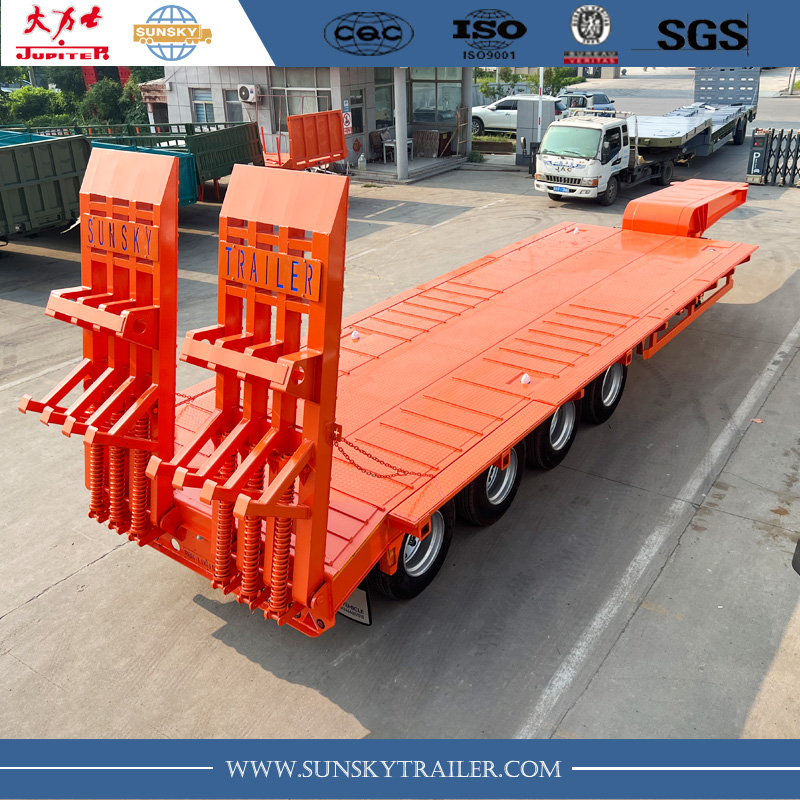

Images of Lowbed Trailer for Heavy Equipment Transport

Engineered Lowbed Trailer for Heavy Equipment Transport

Transporting massive machinery across tough job sites demands more than just load space—it requires absolute structural stability and safety. Our 4-axle lowbed trailer for heavy equipment transport is tailored specifically for move-heavy logistics, offering an impressive 80-ton payload capacity. Designed with a ultra-low deck height of 1100mm, this heavy-duty lowboy drastically lowers the center of gravity, preventing dangerous top-heavy sway when navigating sharp turns, bridge clearances, or uneven dirt roads.

Heavy-Duty Chassis Design for 80-Ton Machinery Hauling

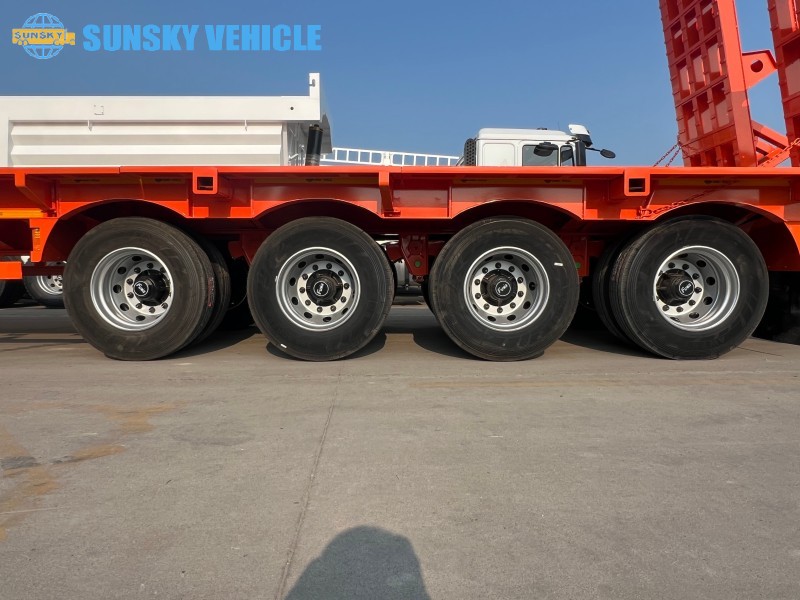

The backbone of any reliability-focused heavy machinery transport trailer lies in its frame construction. Built using premium Q355 high-tensile steel, the main beam stands 550mm high with reinforced flange plates (20mm top, 10mm middle, and 14mm bottom). This heavy-duty structure resists deep sag, twisting, and cracking under concentrated loads like excavators, cranes, and bulldozers. Supported by robust FUWA 13-ton axles and heavy-duty mechanical spring suspension, this chassis evenly distributes extreme vertical shocks over challenging terrain.

+-----------------------------------------------------------------------------------+
|                         TECHNICAL SPECIFICATIONS OVERVIEW                         |
+--------------------------+--------------------------------------------------------+
| Model / Capacity         | 4 Axles 13M 80T Lowbed Semi-Trailer                    |
| Dimensions (L x W x H)   | 13,000 x 2,800 x 3,400 mm (Extends to 3,300 mm width)  |
| Main Frame               | Q355 Steel, 550mm height (Top 20/Mid 10/Bot 14mm)      |
| Loading Deck Height      | ~1100 mm from floor                                    |
| Axles & Suspension       | FUWA 13T x 4 Axles with Mechanical Spring Suspension   |
| Tires                    | 295/80R22.5 Double Tires (16 units + 1 Spare)          |
| Floor & Decking          | 5mm Checkered Steel Anti-Slip Plate                    |
| Multi-Cargo Capability   | 4 Container Twist Locks for 20ft Containers            |
+--------------------------+--------------------------------------------------------+

Expandable Deck Options for Oversized Machinery Transporters

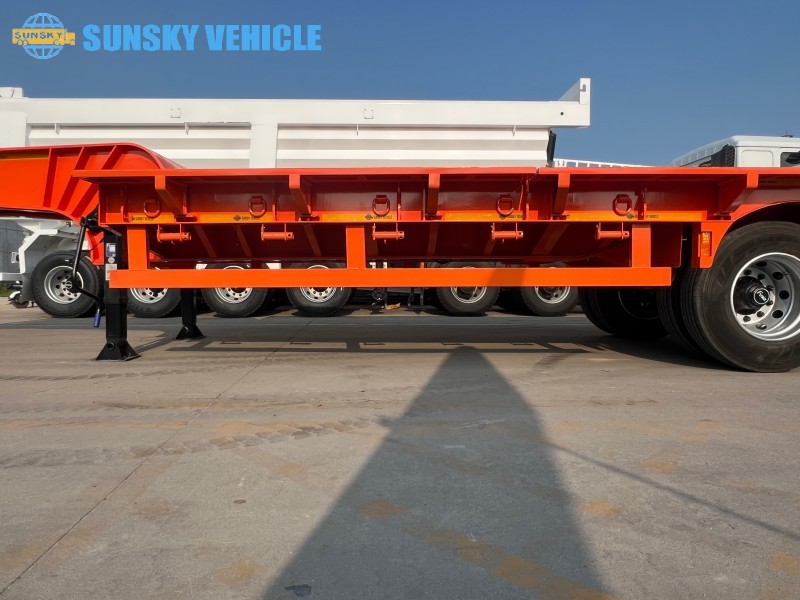

Varying equipment sizes shouldn't mean purchasing multiple trailers. Featuring heavy-duty side brackets, the standard 2,800mm deck quickly expands out to 3,300mm to accommodate oversized tracks and extra-wide machinery. The loading platform spans 9,640mm in length and is lined with 5mm anti-slip checkered plating, giving crawler equipment maximum traction even in wet, muddy conditions. Additionally, built-in rope hooks along the side beams ensure straightforward, secure tie-down procedures every single trip.

Versatile Fleet Integration with Dual-Cargo Capability

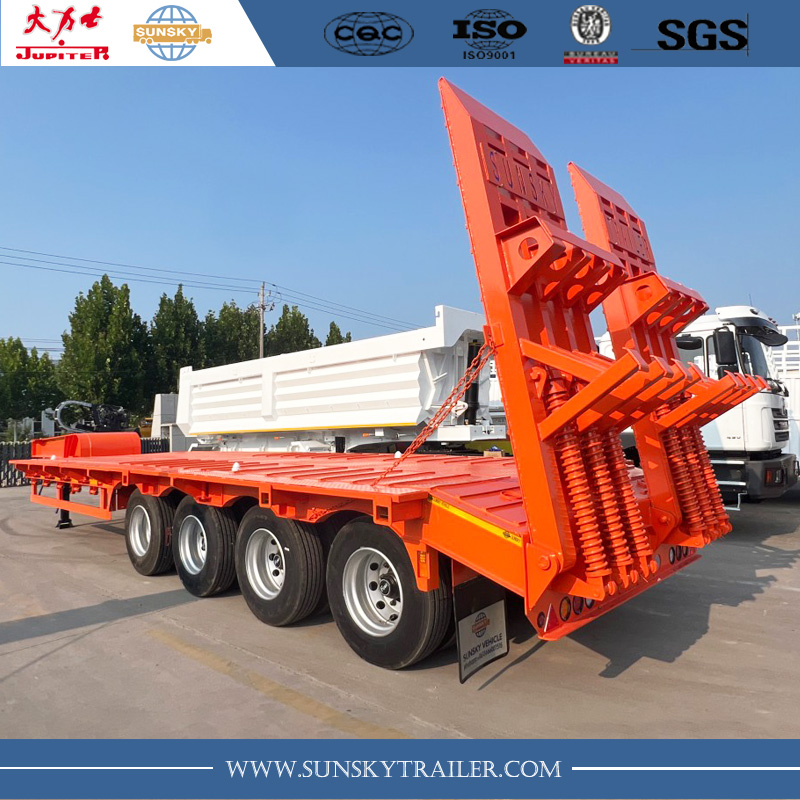

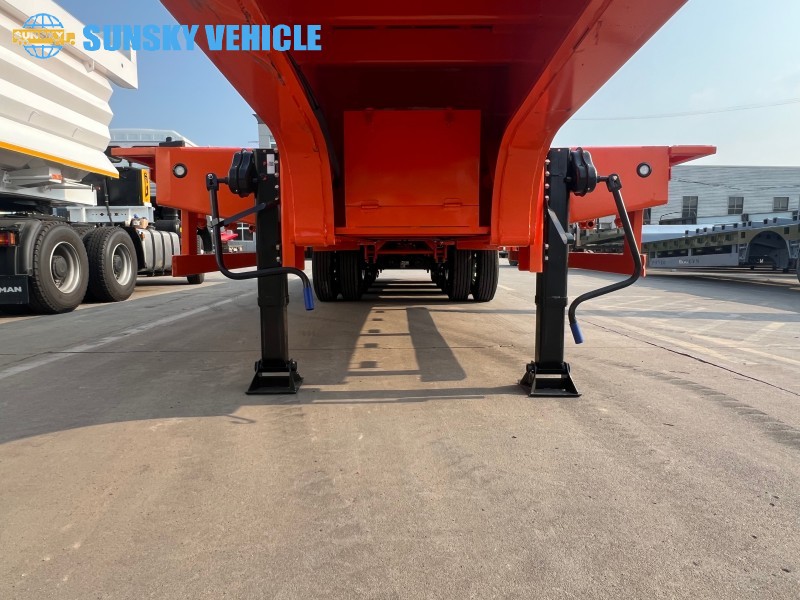

Eliminate empty backhauls and boost your fleet's profit margins. Beyond hauling construction tractors and heavy machinery, this 4 axle lowbed trailer comes integrated with 4 heavy-duty container locks along the main deck. This built-in feature allows operators to seamlessly switch from moving construction gear to securing 20-foot shipping containers on return trips. Combined with manual FUWA 28-ton land legs and reinforced mechanical loading ramps, your operators can quickly load and unload gear with minimal setup downtime.

Dependable Heavy Equipment Hauling Solutions Built for Your Fleet

When high-value machinery is on the move, structural failure is not an option. Every component of our heavy equipment transport trailers—from the precision welding on the H-type side beams (300*140mm) to the multi-layer protective primer paint—is built to handle punishing daily operations. Contact our engineering team today to review customized axle setups, specialized ramps, or to request a direct factory quote for your upcoming project.
