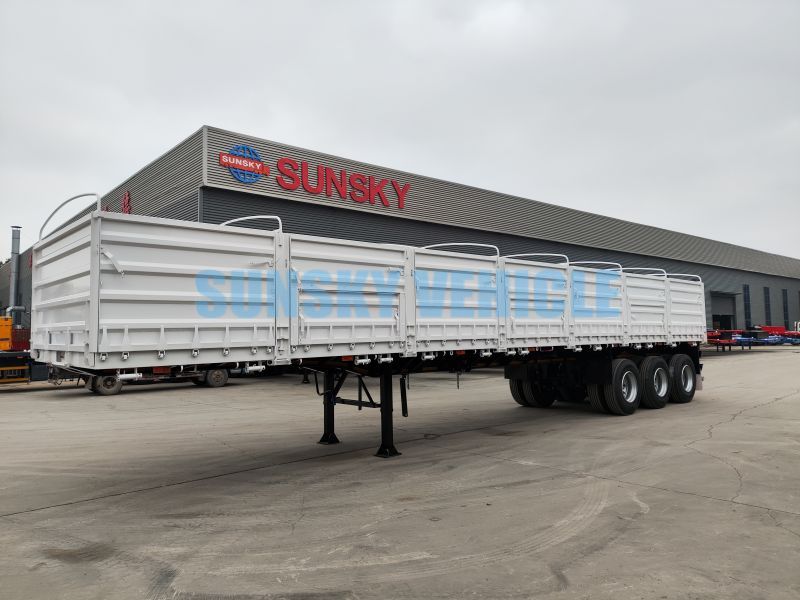

Sidewall Semi Trailer

Side Wall Semi Trailer parameter

13.2M Drop side semi trailer

Feature: Carry containers and bulk cargo

Dimension(L*W*H): Approx. 13200*2560*3300mm

Main frame: Heavy duty and extra durability design; Opting for high

tensible low carbon alloy Q345B steel; I beam welded by

automotive arc-submerge process

Model: XMS9380TP

Height of drop side 1200mm

Nameplate Tare weight(kgs): 4000(real tare weight:8200)

NVM(kgs): 40000

GVM(kgs): 44000

Kingpin: Bolt-in type 2” Landing gear: Two-speed manual operation 19”

Tire size: 12R22.5 (13 sets)

Rim size: 9.00*22.5(13 sets)

Axle: 3 Axle, 13 Tons

Suspension Spring suspension with 8pcs of leaf spring

Brake system: Dual line with Re-6 emergency relay valve, T30/30 air

chamber, 46L air tank

Electric system: One unit of 24V 7-pin ISO standard socket; with brake

light, turn light, reverse light, side light, reflector, fog

light; one set of 6-pin standard cable

Container locks 12(for 1x20GP,2X20GP,1X40HQ)

Painting: Two coat of anti-corrosion prime; one coat of finish

painting

Accessory: One tool box; one set of standard tool

Warranty One year free warranty and spare parts support service. If

you have any problems on the trailers no matter during or

beyond this period, we will provide you the best service

and technical support at any time

Spares availability and sources Local buy
