Grain Dry Van Trailer
Grain Dry Van Trailer Grain Dry Van Trailer Grain Dry Van Trailer

Tri Axle Closed Box Trailer For Grain transport

  • Lead Time:

    35 Days
  • Product Orgin:

    CHINA
  • Brand:

    SUNSKY brand
  • Shipping Port:

    Any port in China
  • Payment:

    T/T,L/C at sight
  • Price:

    $14500/Unit
  • Market Price:

    $16500
  • Price Range:

    20-50/13500$
  • Color:

    Optional
Contact Now
Description

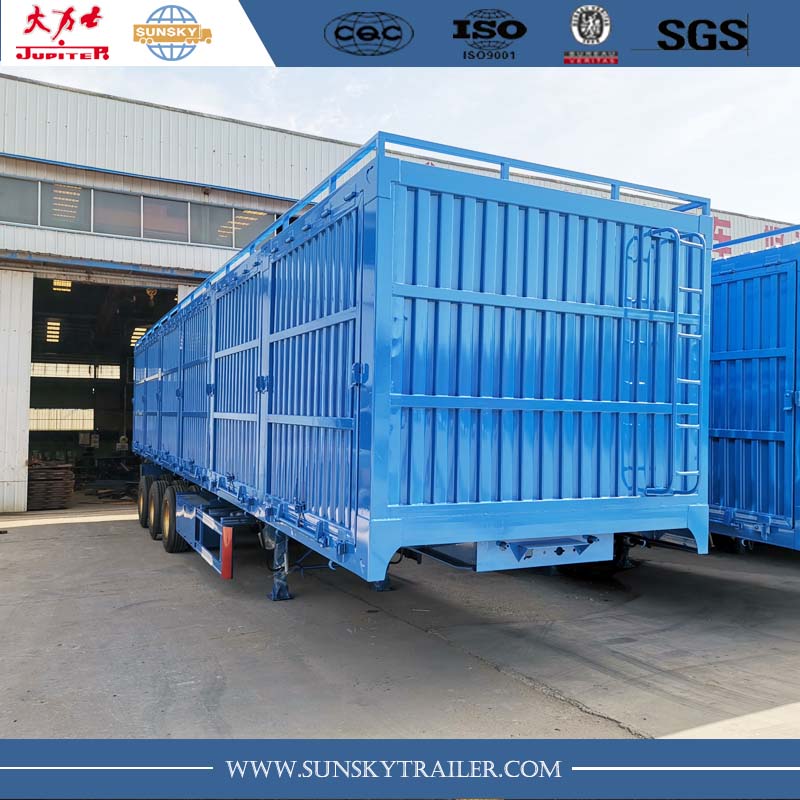

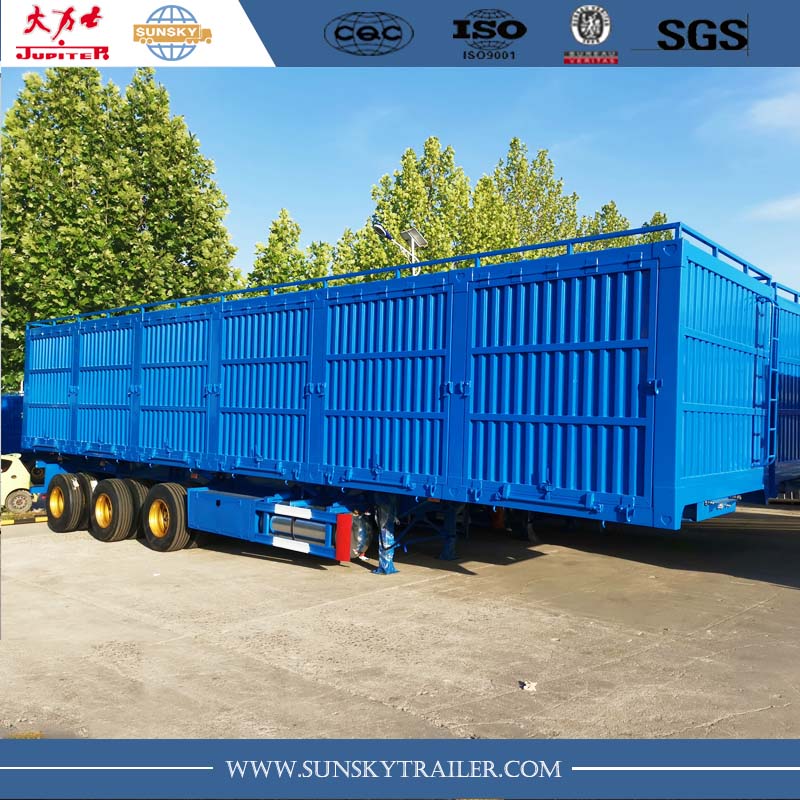

Tri Axle Closed Box Trailer For Grain transport



Feature of Grain Trailer For Kuwait

1.The grain trailer are suitable to carry bulk cargo mainly is grain,wheat etc. Very popular used in mid east countries like Saudi Arabia,Kuwait etc.

2.The main frame of grain trailers are made of  high-tensile carbon steel Q345. Have reasonable structure,light weight,superior carrying capacity and no permanent deformation.

3.The grain trailers with heavy duty design,can carry cargo maximum reached to 60 Tons.Install Side Tipping Hydraulic system. Ensure the grain can be unloaded faster.


Specification of Grain Box Trailer For Sale

Style

Grain Closed Box Trailer With Side Tipper

Dimension(L*W*H):

13500*2600*2200

Main frame:

Heavy duty and extra durability design; Opting for high tensible low carbon alloy Q345B steel; I beam welded by automotive arc-submerge process

Payload(kgs):

60000

Tare weight(kgs):

7500

Kingpin

3.5” bolt-in

Landing gear

19”

Tire size

315/80R22.5 (12 sets)

Rim size

9.0*22.5 (12 sets)

Axle

16 Tons, 3 Axle

Brake system

d Re-6 emergency relay valve, 46L air tank

Air Chamber

MBA T30/30

Electric system:

One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable

Suspension:

Spring suspension with 10 pcs of leafs spring

Painting:

S.A.2.5 standard sandblasting; Two coat of anti-corrosion prime; one coat of finish painting

Hydraulic system

Chinese brand, side tipping

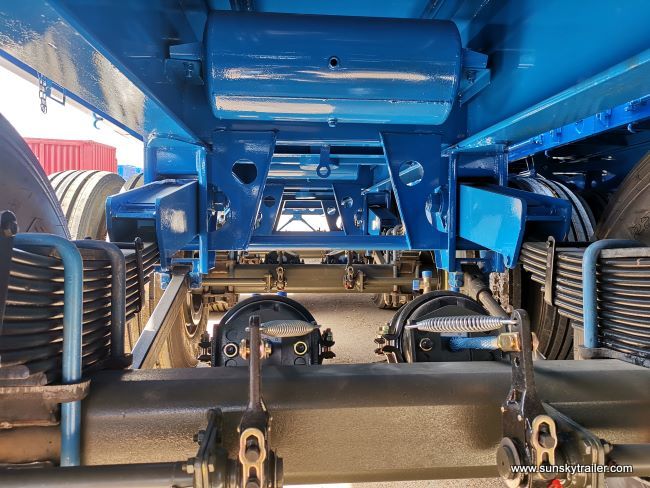

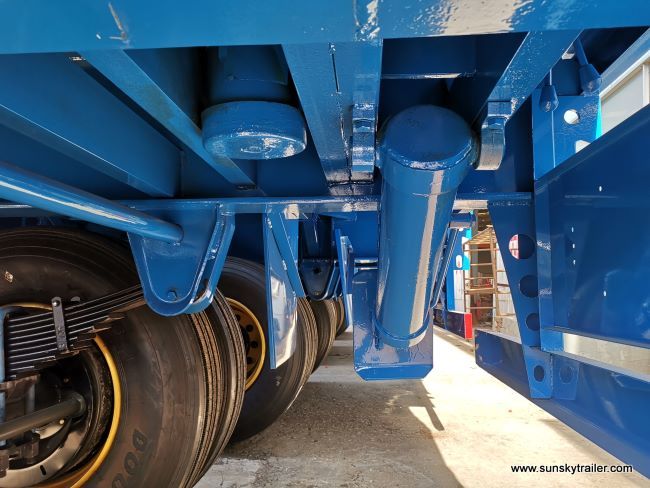

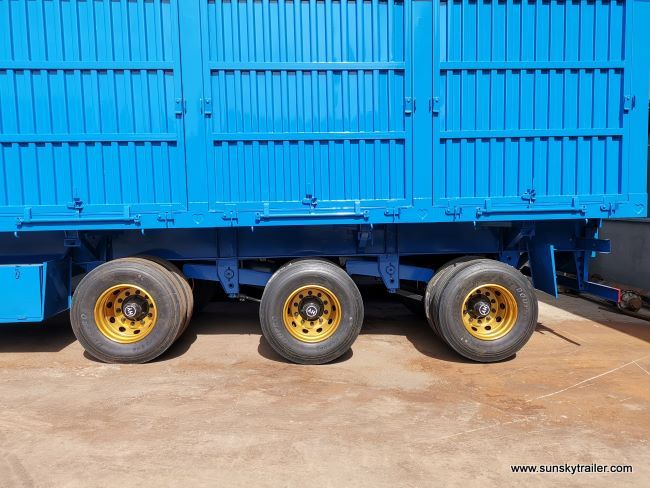

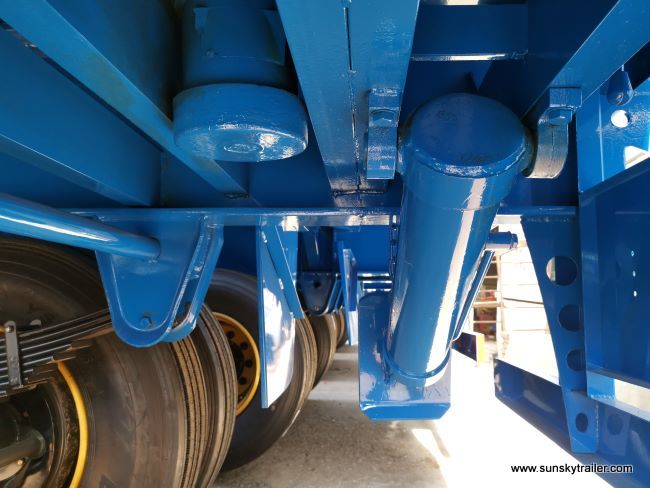

Detailed Photo

Tri Axle Closed Box Trailer For Grain transportTri Axle Closed Box Trailer For Grain transportTri Axle Closed Box Trailer For Grain transportTri Axle Closed Box Trailer For Grain transport


Quality Warranty

1. More than 30 years experience in manufacturing semi-trailers since 1984.

2. One year warranty on the chassis of semi-trailer.

3. Spare parts support service.

4. All trailers can be custom-built as clients requirements,We can also produce the trailers as your drawing and specification.
