3 Alxe Drawbar Trailer
3 Alxe Drawbar Trailer

3 Axle Drawbar Trailer Flatbed Trailer Supplier

  • Lead Time:

    30 days
  • Product Orgin:

    China
  • Brand:

    SUNSKY brand
  • Shipping Port:

    Any Port Of China
  • Payment:

    T/T; L/C
  • Price:

    $16300/21000
  • Market Price:

    $20000
  • Color:

    optional
Contact Now
Description

The drawbar trailer is the earliest type of trailer used in the development of trailers. This kind of trailer has simple structure, convenient connection and wide range of uses. Most of the drawbar trailers are general-purpose drawbar trailers with carriage rails, which can transport various goods, such as coal, sand and gravel, grain, cotton, fertilizer, daily necessities, wood, steel, cement, etc. drawbar trailers include dump trucks, vans, liquid tankers, container vans, refrigerated and insulated trucks, powder bulk trucks, livestock and poultry vehicles, etc. Different types of goods can be transported separately, such as powder, perishable and fragile, liquid, poultry, livestock and other items.


This drawbar trailer from SUNSKY can specially transport containers.


The drawbar trailer can also be used for long-term or temporary parking, because the drawbar trailer will not affect the use of freight vehicles after the drawbar trailer is removed.



Specification

7.5 meters drawbar trailer

Feature:

Carry Bulk cargo

Dimension(L*W*H):

7500*2500*800mm

Front wall

800mm side panel + 600mm extra mesh

Main frame:

Heavy duty and extra durability design; Opting for high tensible low carbon alloy Q345B steel; I beam welded by automotive arc-submerge process

No. of axle:

3

Model:

XSS9380FT

Payload(kgs):

30000

Tare weight:

7000KGS

Turntable:

20 ton

Tire size:

Triangle brand 12.00R20 (12 Sets)

Rim size:

9.00*20 (12 Sets)

Axle:

Genuine BPW brand 13T,3 Axles

Suspension:

3-axles leaf spring suspension

Brake system:

Dual line with Re-6 emergency relay valve, T30/30 air chamber, 46L air tank

Electric system:

24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable

Container locks

4(for 1x20GP)

Painting:

Two coat of anti-corrosion prime; one coat of finish painting, Color optional

Accessory:

One tool box

Color:

Dark blue




Quality guarantee

1. More than 30 year's experience in semi-trailers industrial,we are able to produce and design the semi-trailers as client's request.

2. Spare parts support service.

3.Two years free warranty terms, ensure the semi-trailer use more than 10 years life span.


Images

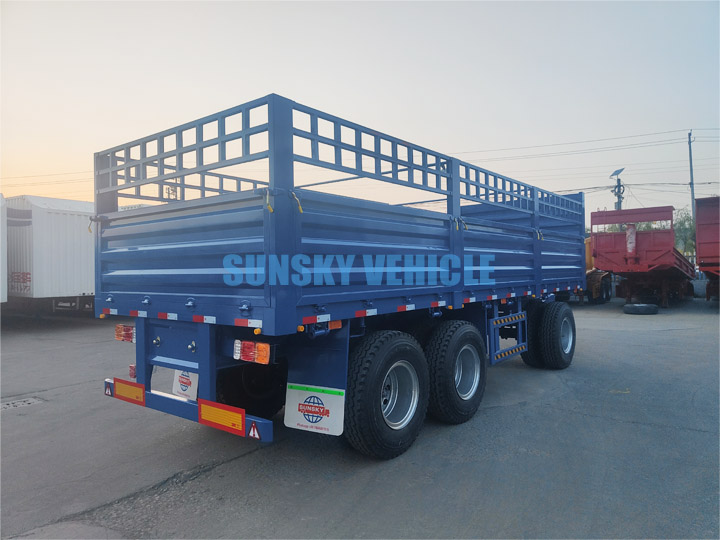

drawbar trailer supplier

full trailer factory
