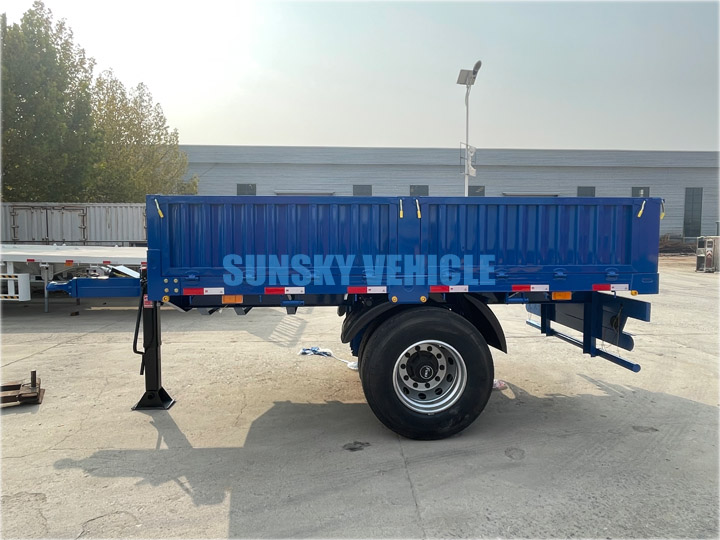

One Axle Flatbed Drawbar Trailer with Side Wall

One Axle Flatbed Drawbar Trailer with Side Wall

  • Lead Time:

    30 days
  • Product Orgin:

    China
  • Brand:

    SUNSKY brand
  • Shipping Port:

    Any Port Of China
  • Payment:

    T/T; L/C
  • Price:

    $5000/8000
  • Market Price:

    $7000
  • Color:

    optional
Contact Now
Description

Flatbed drawbar trailer: a type of trailer, refers to the loading part of the drawbar trailer with flat floor structure and side wall.

In the structure, the weight of the semi-trailer is now borne by the master and hang together, and it needs to stand on the legs after leaving the main car, which is inconvenient to move again; On the other hand, the drawbar trailer can stand on its own "excellent" condition because the front traction bar (frame) is equipped with a separate axle and supports steering, which means that the main car only provides power for traction.

In use level, one is the same length of the case, the full hanging train turning radius is smaller than the semi-hanging train, higher flexibility. Second, the drawbar trailer can bear the load independently, which can effectively reduce the waiting time for unloading of the main vehicle and increase the load rate, thus greatly improving the possibility of slung transport.


Specification

One axle drawbar trailer with side wall

Feature:

Carry Bulk cargo

Dimension(L*W*H):

5360*2500*2000mm

The Height of Side Wall

600mm(as requirement)

Main frame:

Heavy duty and extra durability design; Opting for high tensible low carbon alloy Q345B steel; I beam welded by automotive arc-submerge process

Model:

XMS9380FT

No. of axle:

1

Payload(kgs):

10000

Tare weight(kgs):

2400

Landing gear:

19”

Tire size:

12R22.5 (4 Sets)

Rim size:

9.00*22.5 (4 Sets)

Axle:

FUWA brand-13T

Suspension

Spring suspension

Brake system:

Dual line with Re-6 emergency relay valve, T30/30 air chamber, 46L air tank

Electric system:

24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable

Hook:
with hook on the front of trailer

Painting:

Two coat of anti-corrosion prime; one coat of finish painting, Color optional



Images

drag trailer


drawbar trailer for sale

full trailer

Quality guarantee of flatbed trailers

1. More than 30 year's experience in semi-trailers industrial,we are able to produce and design the semi-trailers as client's request

2. Spare parts support service

3.Two years free warranty terms, ensure the semi-trailer use more than 10 years life span.
