Heavy Duty 60 Tons 5 Axle Tipping Trailer

  • Item NO.:

    dump trailer
  • Lead Time:

    35 Working Days
  • Product Orgin:

    China
  • Brand:

    SUNSKY brand
  • Shipping Port:

    Any port of China
  • Payment:

    T/T, L/C at sight
  • Price:

    $22500
  • Market Price:

    $24500
  • Price Range:

    10-50/21500$
  • Color:

    Option
Contact Now
Description

Heavy Duty 60 Tons 5 Axle Tipping Trailer


New Design 5 Axle Tipper Trailer

Heavy duty and extra durability design. Opting high tensile low carbon alloy Q345B Steel. I beam welded by automotive arc-submerge process.

Durable Material for tipper transportation

The main frame body is made of Q345B high strength structure steel, automatic submerged arc welding throughout beams, and other cross-section main stringers structure for optimum carrying effect.

Large Payload Tipper Trailer For West Africa

Use advanced over load design and welding technology for the chassis. Ensure the strong of trailer body. Make sure the tipper trailer still in good condition even in small overloading. The payload can be design max to 100 tons.

Waboco Brand Brake system

The tipper trailers equip full braking and electrical systems at home and abroad in accordance with ISO standard .Optional ABS system, braking, lighting is absolutely safe and reliable.



Quality guarantee

‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑

1) Manufacturer,more than 30 years professional experience.
2) Two years guarantee term provided freely.

3) Export more than 1000 units to Africa, Southeastern Asia, and South America.
4) We can produce the trailer and truck as your drawing or requirements, help you saving the cost and time.


Specification:

‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑

Style

45CBM 5 Axle Tipper Trailer

Model

SS9600ZYX

Dimension(L*W*H)mm:

11500*2550*3700

Inner dimension(L*W*H)mm:

10300*2350*1800

The material of body

BS700MC high tensible 4mm

Payload(kgs):

60000

Volume(CBM)

45 CBM

Tare weight(kgs):

14000

Kingpin

JOST 3.5” bolt-in

Landing gear

JOST 19”

Tire and rim

12R22.5

Axle

Fuwa brand 13 tons,5 Axle

Suspension

3 Axle Spring suspension Plus 2 axle airbag with lifting

Brake system

Re-6 emergency valve

Air Chamber

MBA T30/30

Hydraulic system:

HYVA brand


Detail Photo

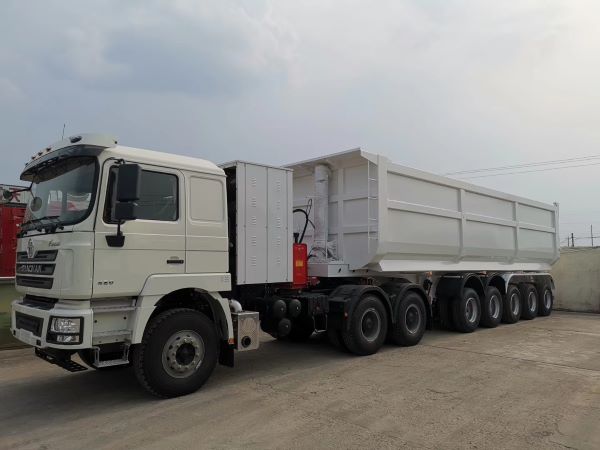

60 tons 5 axle tipper trailer5 axle tipper trailer for sale ghanatipper trailer with airbag suspension
