SINOTRUK HOWO Tractor Head 420HP

The SINOTRUK HOWO tractor head 420HP is a heavy-duty 6x4 prime mover engineered for punishing logistics and mining operations. Featuring a high-torque D12.42 engine and reinforced HC16 axles, this truck ensures maximized uptime on unpaved roads worldwide.

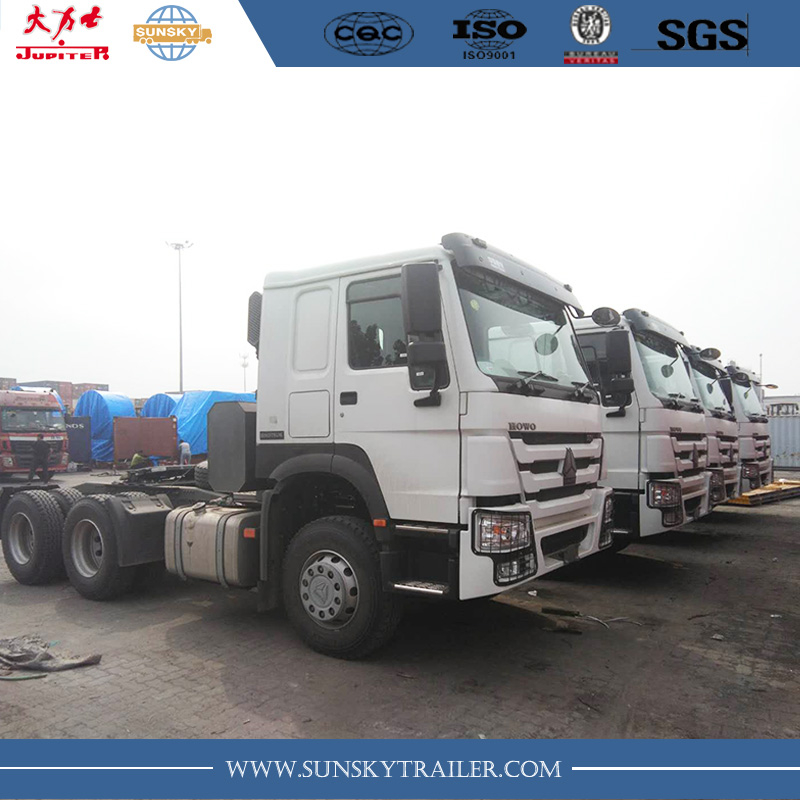

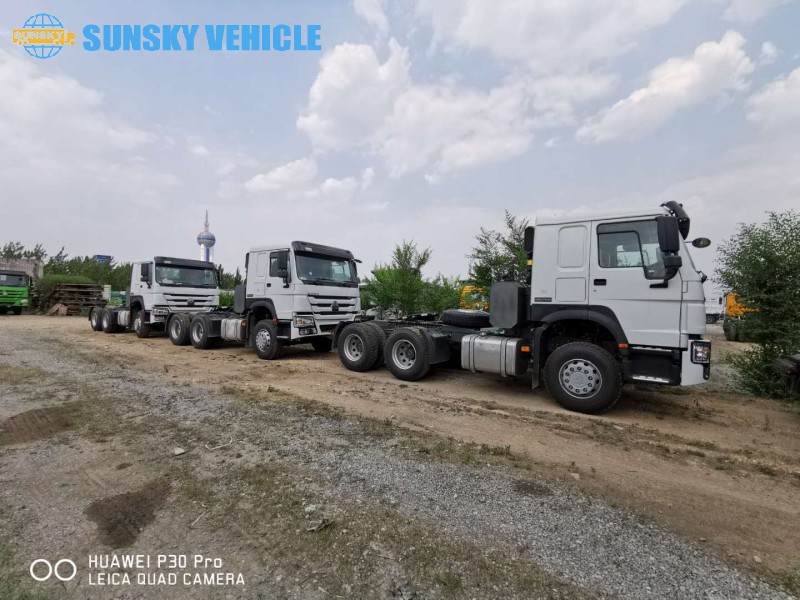

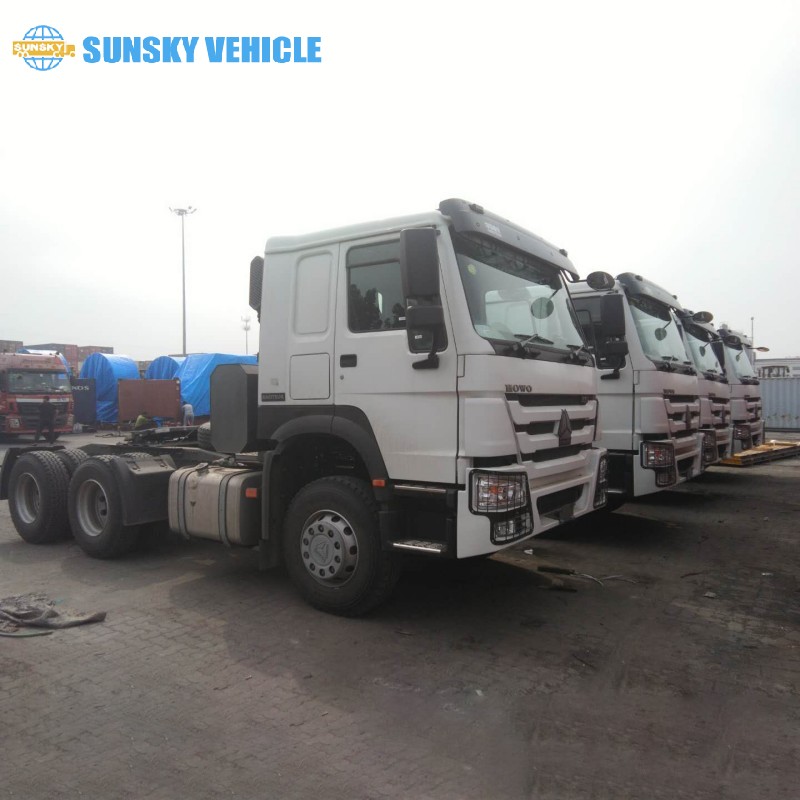

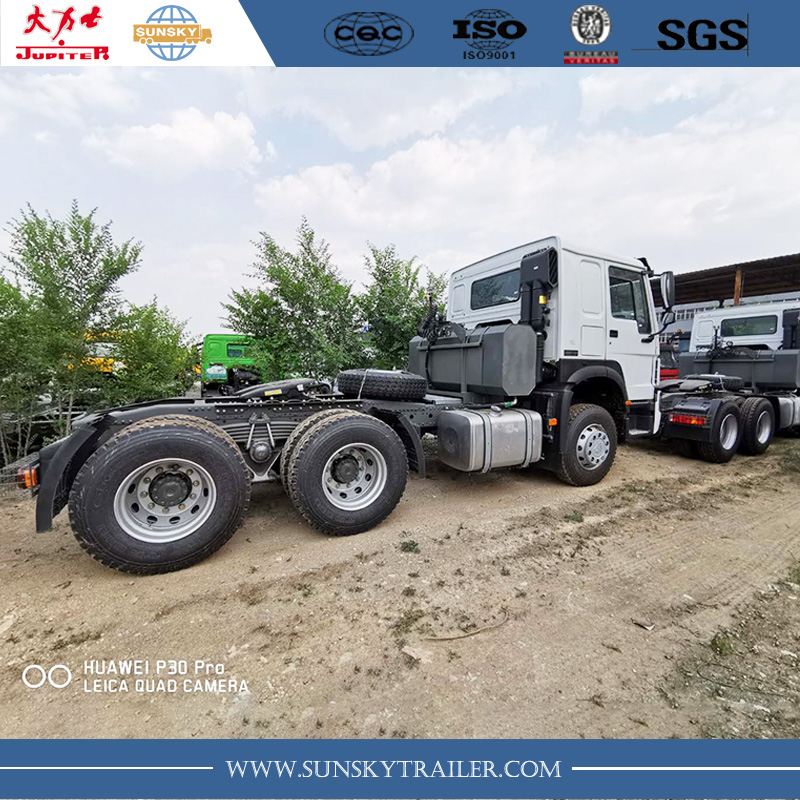

Images of SINOTRUK HOWO Tractor Head 420HP

Features of HOWO 420HP truck tractor 6X4

Eliminate Fleet Downtime with the Rugged HOWO 420HP Truck Tractor

In cross-border logistics and heavy mining transport, unexpected vehicle breakdowns destroy your operational margins. Rough unpaved terrains, steep inclines, and severe overloading frequently cause standard truck frames to crack and axles to deform.

The SINOTRUK HOWO tractor head 420HP solves these structural bottlenecks. Built with a heavy-duty, dual-layer premium steel parallel ladder frame ($300 \times 80 \times 8\text{ mm}$), this HOWO 420HP truck tractor delivers exceptional torsional stiffness. It absorbs severe road shocks without structural fatigue, keeping your operations moving smoothly where ordinary fleets fail.

High-Torque D12.42 Engine Built for Harsh Fuels and Maximum Fuel Economy

Engine reliability depends entirely on fuel adaptability and power distribution. The powerhouse driving this SINOTRUK HOWO tractor head 420HP is the legendary D12.42 turbocharged diesel engine, producing 420 horsepower at 2,000 rpm and a massive 1,820 Nm of torque within a low 1,100–1,400 rpm range.

Paired with the robust HW19710 10-speed manual transmission, this powertrain optimizes gear ratios for heavy hauling. Unlike sensitive common-rail systems that fail when exposed to low-quality or high-sulfur fuel in remote regions, our heavy-duty injection system handles fuel variations reliably. This engineering choice reduces your fleet's fuel consumption by up to 10% while preventing expensive fuel-system overhauls.

Reinforced 6x4 Chassis and Tandem Axles Engineered for Extreme Payloads

When hauling heavy fuel tankers, flatbeds, or tipper semi-trailers, rear-axle load capacity dictates your legal and physical boundaries. This HOWO 6x4 tractor truck 420hp features the industry-proven HF9 9-ton heavy front steering axle and dual HC16 16-ton double-reduction driving axles.

Heavy-Duty Chassis Architecture:

• Double-Reduction Axles: The HC16 hub reduction system multiplies wheel-end torque, yielding a 33% gradeability and allowing fully loaded combinations to climb steep, muddy slopes effortlessly.

• Heavy-Duty Leaf Springs: Equipped with thickened multi-leaf springs (10 front / 12 rear) and double-acting hydraulic shock absorbers to guarantee lateral stability under high centers of gravity.

• Optimized Braking Safety: Dual-circuit compressed air brakes coupled with an Engine Exhaust Valve Brake (EVB) system prevent brake fade during prolonged down-slope hauling.

Ergonomic HW76 Extended Cabin for Peak Driver Productivity

Long-distance transport demands an environment that combats operator fatigue. The extended HW76 cab on the HOWO 420HP truck tractor utilizes a 4-point fully floating air suspension system that dampens severe road vibrations before they reach the driver.

The interior functions as a highly productive workspace and rest area. It features a fully adjustable ergonomic air-ride seat, a wrap-around dashboard with an integrated VDO electronic control module, high-capacity air conditioning, and a comfortable 600mm wide sleeper berth with reinforced support. By keeping your operators comfortable, you directly reduce transit delays and enhance overall trip safety.

Technical Specifications Table

Comprehensive Maritime Export Protection and Global Spare Parts Network

Purchasing a heavy commercial vehicle overseas requires bulletproof logistics and post-sale reliability. We inspect every SINOTRUK HOWO tractor head 420HP via a rigorous 50-point checklist prior to port delivery. To shield your investment from saltwater corrosion during open-sea transit, we apply a multi-layer, heavy-duty anti-rust wax coating to the entire chassis and cab.

Furthermore, we solve the common nightmare of sourcing replacement components. Our dedicated logistics division maintains an extensive inventory of 100% genuine SINOTRUK spare parts—ranging from air filters to complete cylinder heads—guaranteeing rapid dispatch via global air express. From roll-on/roll-off (Ro-Ro) shipping to bulk cargo securing, we ensure your vehicle arrives on-site, ready to generate revenue immediately.

Secure an Immediate Factory Quote for Your Fleet

Do not let fragile equipment slow down your logistics or mining operations. Contact our heavy vehicle engineering team today to receive a highly competitive, factory-direct price quotation for the SINOTRUK HOWO tractor head 420HP tailored to your regional payload requirements.
