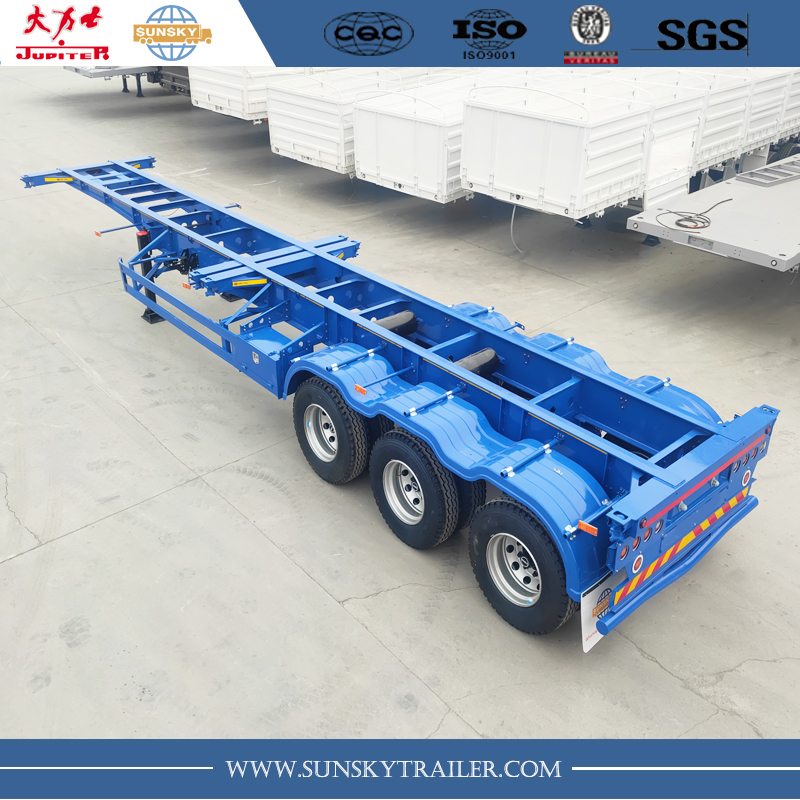

Skeleton Semi Trailer

The skeleton semi-trailer is a special semi-trailer used to transport containers, and its body structure is simple, mainly composed of a solid frame, which is used to support and fix the container.

40ft Skeleton Trailer parameters

Feature: Carry 1X20FT、1X40FT、or 2X20FT container

Dimension(L*W*H): 12420*2480*1470mm

Main frame: Heavy duty and extra durability design; Opting for high tensible low carbon alloy Q345B steel; I beam welded by automotive arc-submerge process

Model: XMS9350TG

No. of axle: 3

Payload(kgs): 40000

Tare weight(kgs): 5600

Kingpin: Bolt-in type 2”

Landing gear: Two-speed manual operation 19”

Tire size: 315/80R22.5 (13 sets)

Rim size: 9.00*22.5(13 sets)

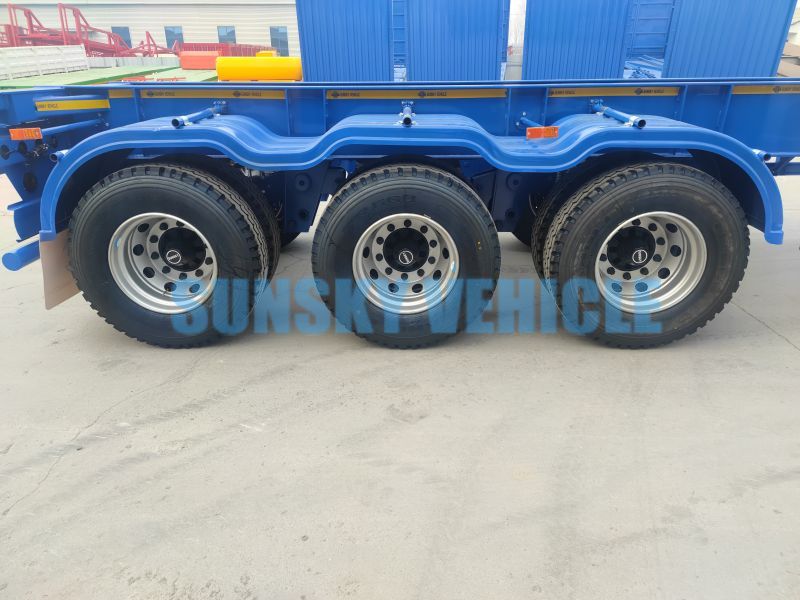

Axle: 3 Axle, 13 Tons

Suspension：Spring Germany type suspension with 12pcs of leaf spring

Brake system: Dual line with Re-6 emergency relay valve, T30/30 air chamber, 46L air tank

Electric system: One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable

Container locks 12(for 1x20GP,2X20GP,1X40HQ)

Painting: Two coat of anti-corrosion prime; one coat of finish painting

Accessory: One tool box; one set of standard tool

Applicable scenarios:
Ports and freight terminals: used for the loading and unloading and transportation of containers.
Road transport: for long-distance container transportation, connecting ports and logistics centers.
Logistics and freight industry: It is widely used in the logistics and freight industry, providing important support for the fast and efficient transportation of goods.
