Skeleton Trailer

The Skeleton Trailer is a special semi-trailer used to transport containers, and its body structure is simple, mainly composed of a solid frame, which is used to support and fix the container.

40ft Skeleton Trailer parameters

Feature: Carry 1X20FT 、1X40FT 、or 2X20FT container

Dimension(L*W*H): 12370*2480* 1540mm

Main frame: Heavy duty and extra durability design; Opting for high tensible low carbon alloy Q345B steel; I beam welded by automotive arc-submerge process

Model: XSS9350TG

No. of axle: 3

Payload(kgs): 40000

Tare weight(kgs): 5600

Kingpin: Bolt-in type 3.5” or 2”

Landing gear: FUWA brand two-speed manual operation 19”

Tire size: TRIANGLE brand  385/65R22.5  (7  sets,  including  one spare tire)

Rim size: 11.75*22.5 (7 sets, including one spare rim)

Axle: FUWA brand 3 Axle, 13 Tons

Suspension Spring suspension with 10pcs of leaf spring

Brake system: Dual line with Re-6 emergency relay valve, T30/30 air chamber, 46L air tank

Electric system: One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse  light,  side  light,  reflector,  fog light; one set of 6-pin standard cable

Container locks 12(for 1x20GP,2X20GP, 1X40HQ)

Painting: Two  coat  of  anti-corrosion  prime;  one  coat  of  finish painting

Accessory: One tool box; one set of standard tool

With 500L water tank with sprayer

With back container door blocker

With WABCO ABS

Short wheelbase design for Madagascar market With 220mm brake pad

Color: Optional

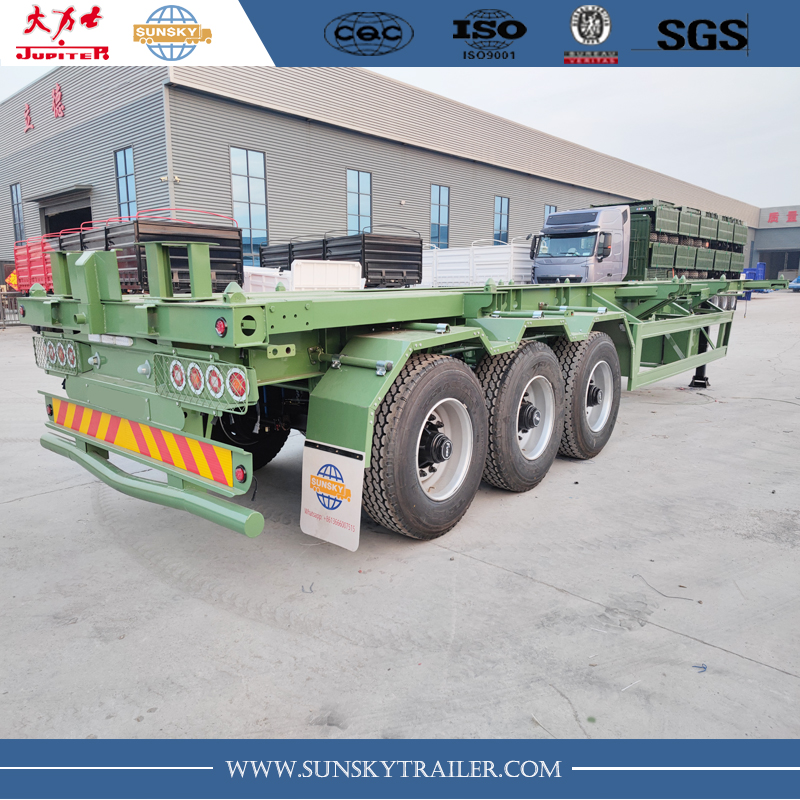

Skeleton Trailer Image

Applicable scenarios:
Ports and freight terminals: used for the loading and unloading and transportation of containers.
Road transport: for long-distance container transportation, connecting ports and logistics centers.
Logistics and freight industry: It is widely used in the logistics and freight industry, providing important support for the fast and efficient transportation of goods.
